Overview

As precision electronic products require higher inspection accuracy, faster production speeds and greater consistency, vision inspection has become an important part of automated manufacturing.

MIJOINT combines machine vision, automation equipment and inspection systems to provide inline vision inspection solutions for connectors, cable assemblies and precision electronic components. Vision guidance, dimensional inspection, appearance inspection and defect detection can be configured according to product and inspection requirements, with options for inspection data collection and traceability.

Needs & Solution

Requirements & Solutions

Industry Needs & Challenges

High-Precision Inspection: Meeting inspection requirements for dimensions, position and assembly consistency.
Multi-Dimensional Inspection: Configurable inspection of appearance, dimensions, position and defects based on product requirements.
High-Speed Inline Production: Keeping inspection speed aligned with automated production while reducing manual intervention.
Quality Data Management: Linking inspection results with product information for process data collection and traceability.

Mijoint Solution

MIJOINT integrates industrial cameras, AI vision algorithms and automation control into inline vision inspection systems, with configurable inspection modules based on product and inspection requirements.

Solutions can cover vision guidance, dimensional inspection, appearance inspection, defect detection and assembly verification, with integration options for automated handling, production equipment and MES systems to support inline inspection and data traceability.

Vision algorithms and inspection solutions can be refined and adapted for different products, inspection requirements and production speeds.

Process & Capability

Processes & Capabilities

01

Vision Guidance

Positioning, alignment and vision-guided operations

02

Dimensional Inspection

Key dimensions, position and geometric features

03

Appearance Inspection

Surface defects, contamination and visual abnormalities

04

Defect Detection

Missing welds, poor welds, misalignment, burrs and other defects

05

Traceability

Code identification, inspection data collection and MES integration

Customer Verification

Customer Validation

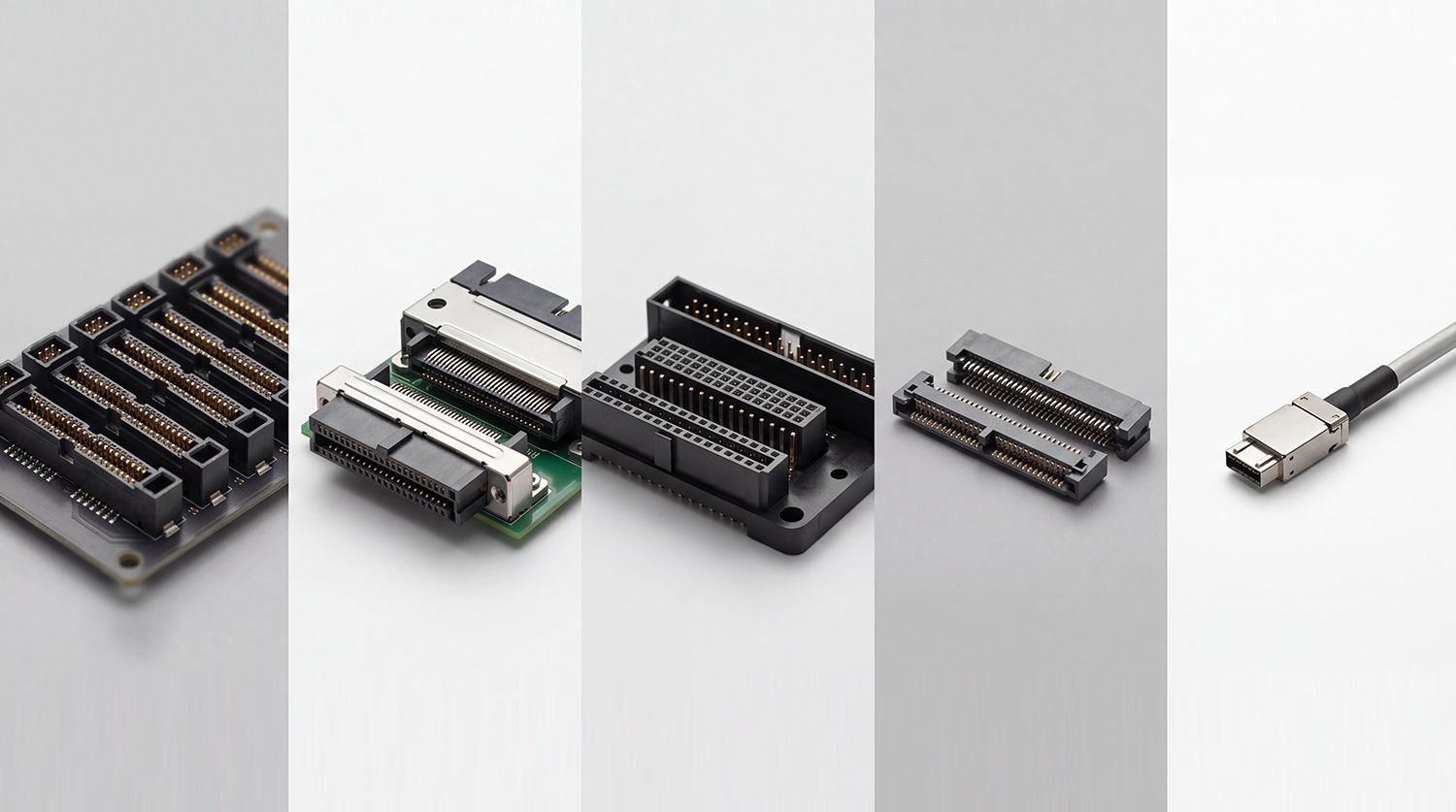

MIJOINT has integrated vision inspection into automated manufacturing processes for connectors, cable assemblies and precision electronic components, with project experience covering high-speed backplane connectors, SAS connectors and FAKRA cable assemblies.

±0.01 mm Typical Inspection Accuracy

≥120 pcs/min Typical Inspection Speed

≤0.1% Dimensional False-Positive Rate

≤0.5% Defect False-Positive Rate

>0.2 mm² Minimum Detectable Defect Area
