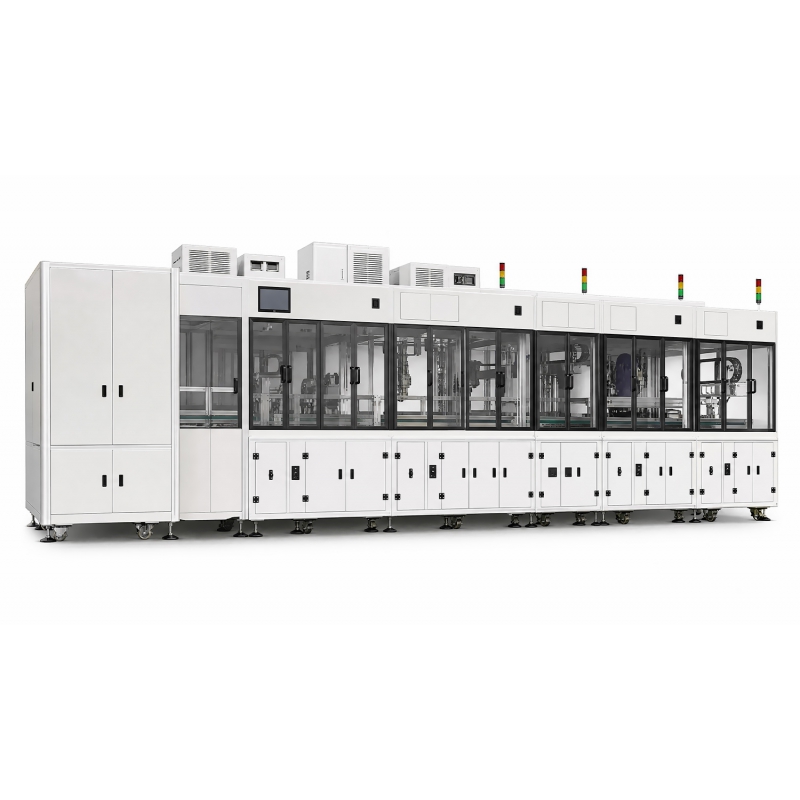

Fully Automatic Type-C Two-In-One Assembly Equipment

Consumer Electronics

Fully Automatic Type-C Two-In-One Assembly Equipment

A fully automatic precision assembly equipment that integrates a precision cutting and moving integrated device and a high-speed magnetic levitation transmission system. Specially used for automated processing of IM&EMI assembly of Type-C connectors. The high-precision cutting and moving mechanism ensures cutting and moving efficiency, and the multi-motor magnetic levitation technology is used to increase the carrier moving speed and assembly efficiency, significantly improving the production stability of the equipment.

Service and support dial400 830 1117
Submit requirements
Product introduction

Product introduction

Application scenarios

Industry: Widely used in the field of 3C electronic connectors.

Applicable products: Specifically tailored for the assembly of Type-C connectors.

Production line compatibility: Compatible with semi-automatic & fully automatic production modes, supporting stand-alone operation or full line integration.

Core advantages

More introduction

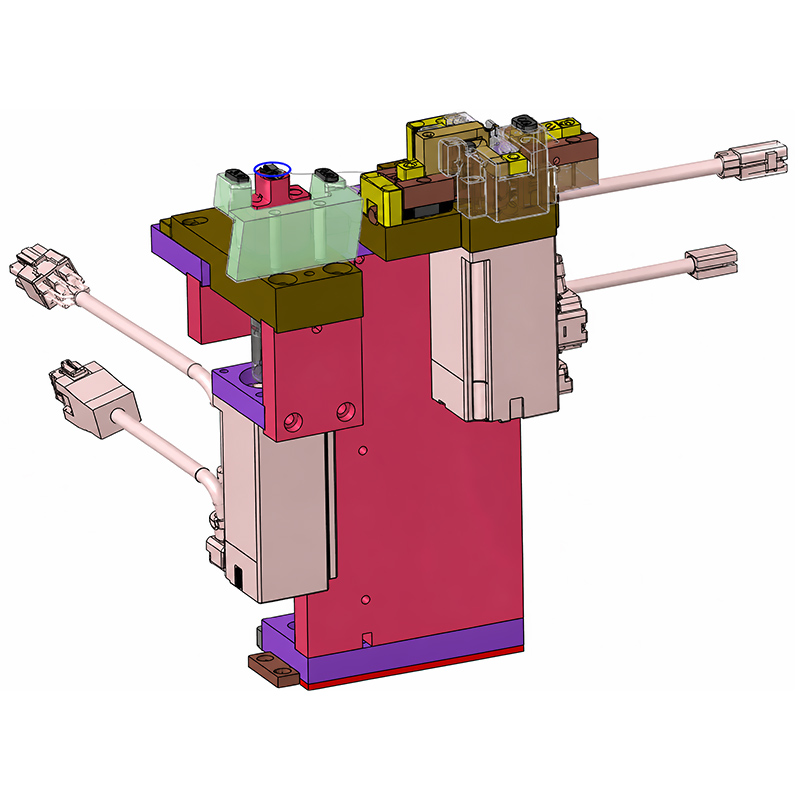

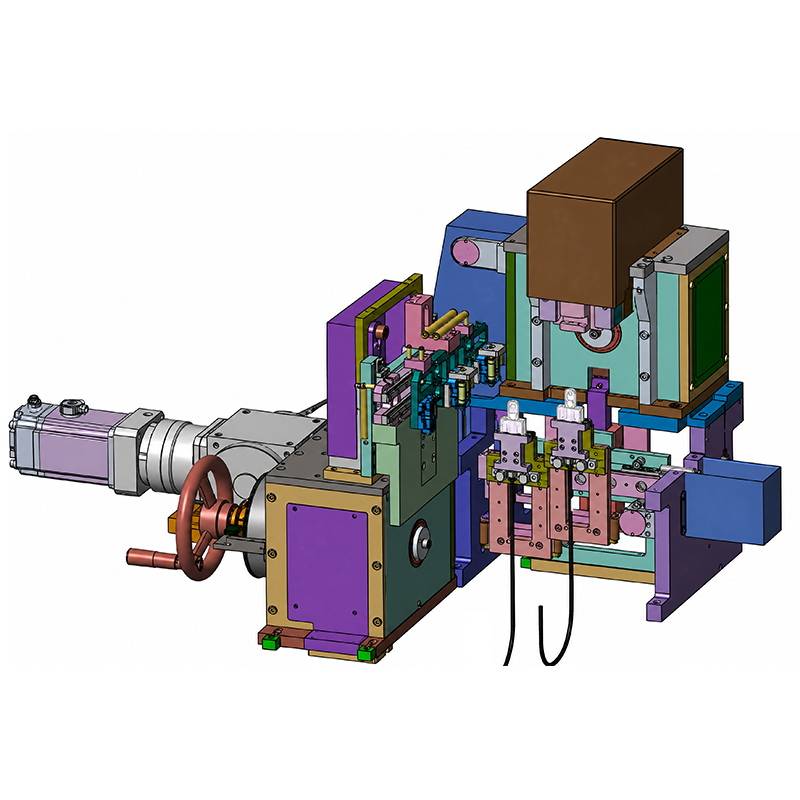

The equipment is imported into our company's self-developed cutting and moving integrated device and rotation correction and positioning device.

The equipment uses Nabowang magnetic levitation (6 movers), with a repeatability accuracy of 0.01mm, a maximum speed of 2m/s, and an acceleration of 1.5m/s. The 6 movers pass through the code scanning and assembly station in sequence.

Technical parameters

Technical parameters

Item Parameters
Size 8550mm*1200mm*2240mm
CT 0.8s
OEE 85%
Yield 99%
