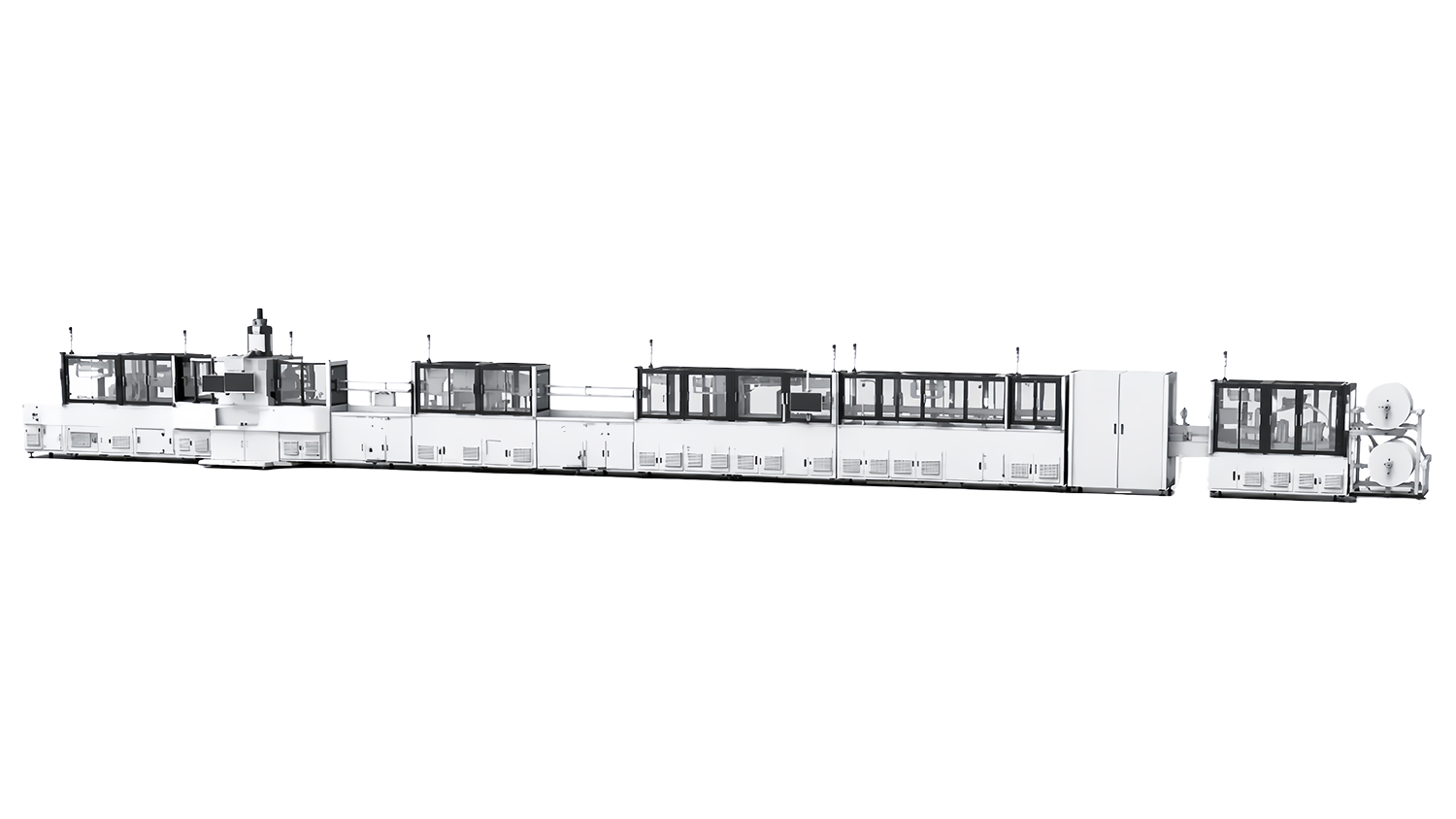

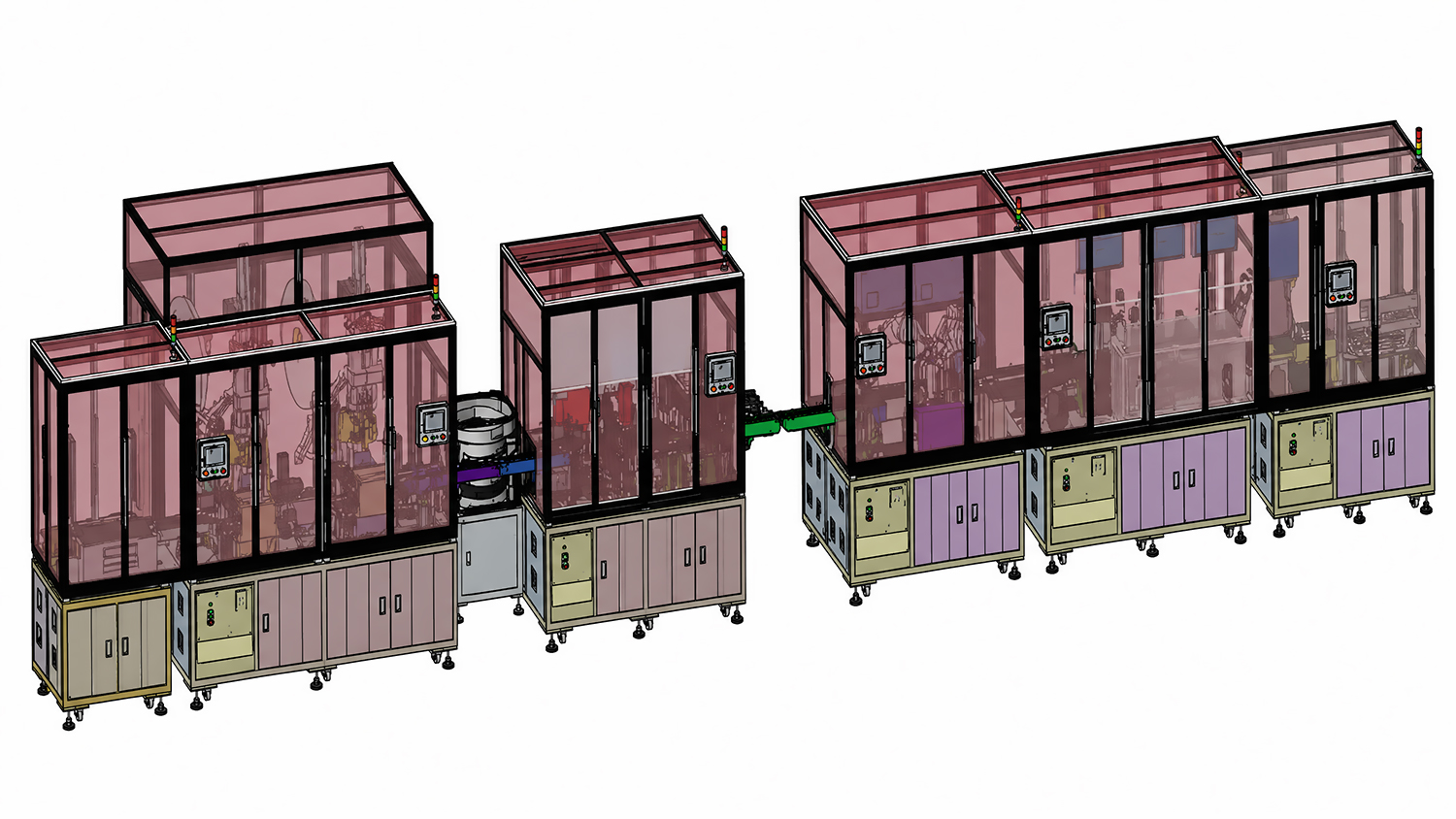

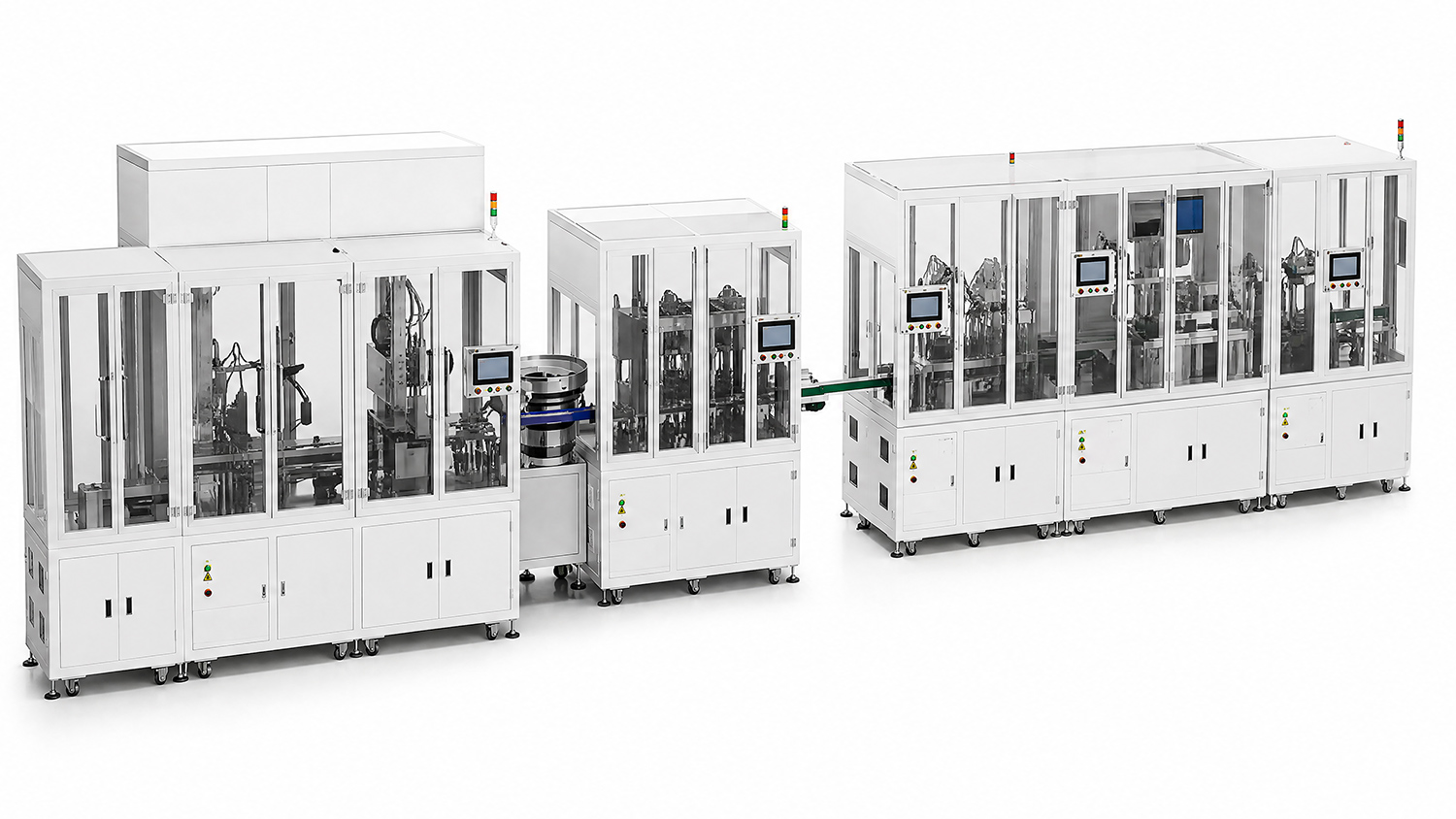

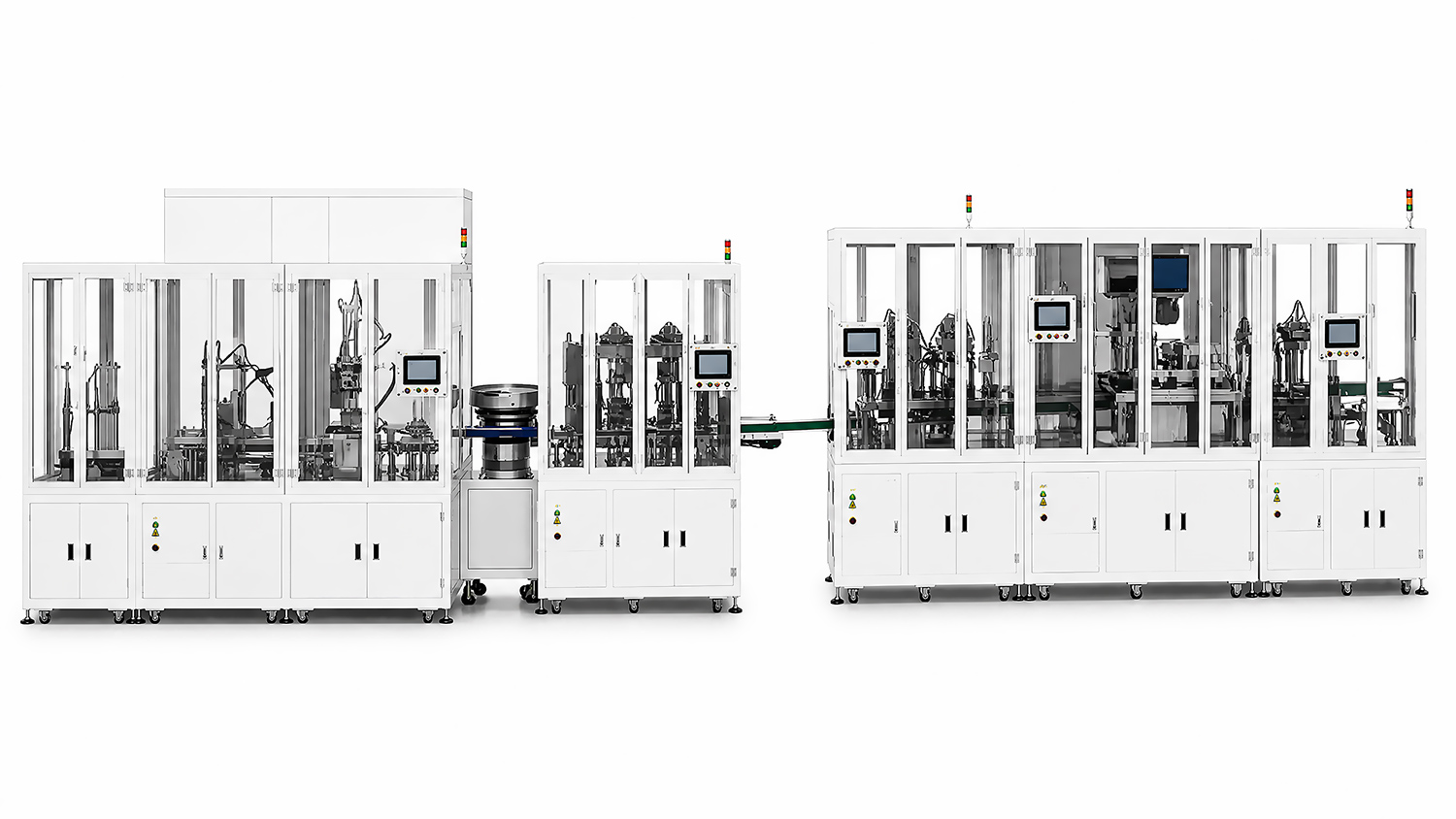

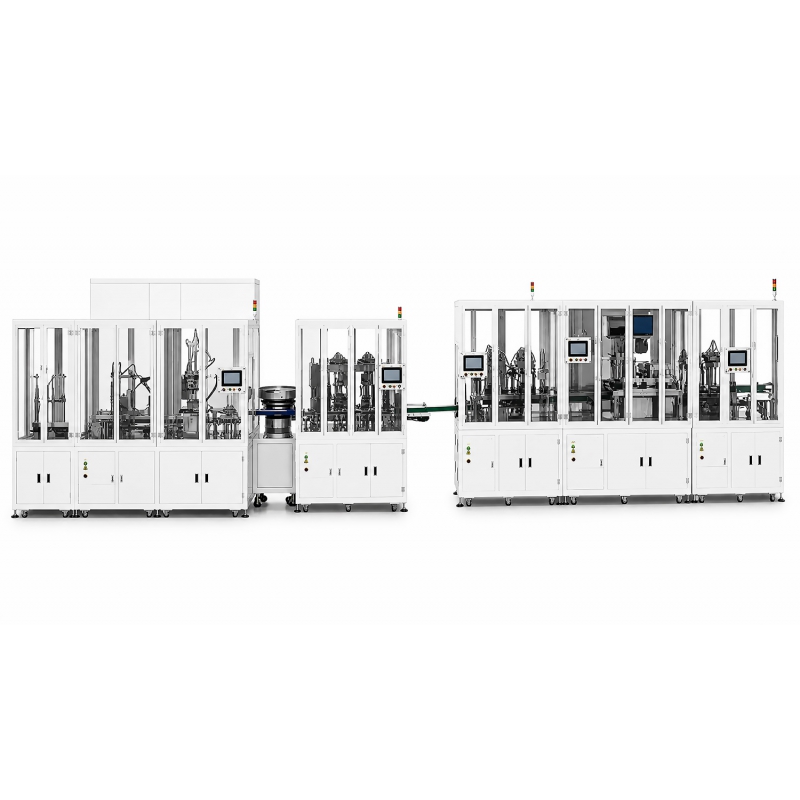

Fully Automatic High-Speed Backplane Connector Assembly and Inspection Line

This automatic line integrates a cam pin system and a high-precision visual inspection system, specially built for high-performance backplane connectors in the communications field. High-precision assembly is achieved through high-speed cam pin technology, which significantly improves the production cycle and saves labor costs.

Service and support dial400 830 1117
Submit requirements
Product introduction

Product introduction

Application scenarios

1. Industry: Widely used in communications, data centers, automotive electronics and other fields.

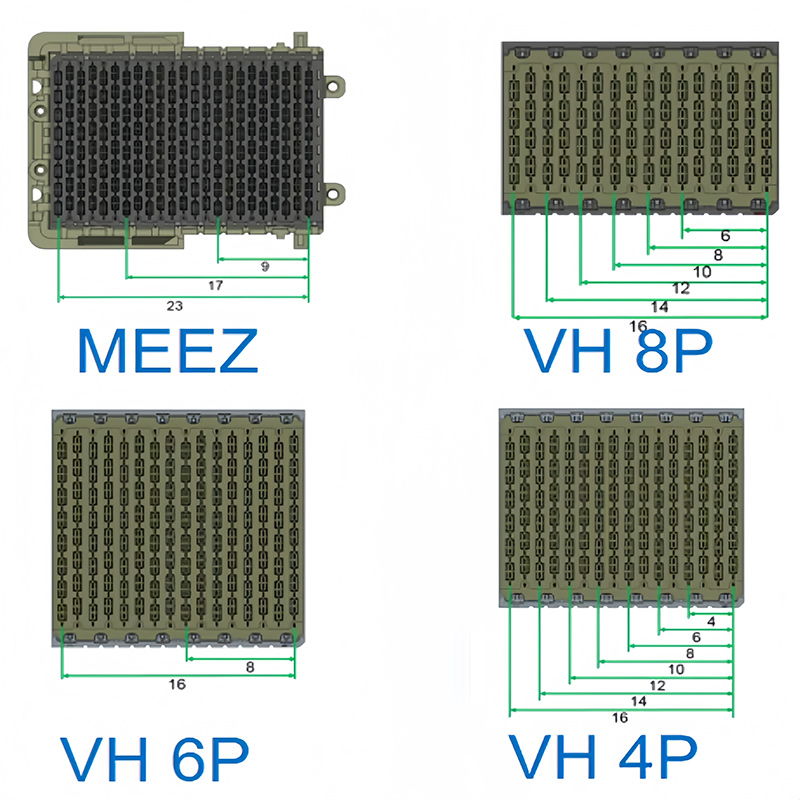

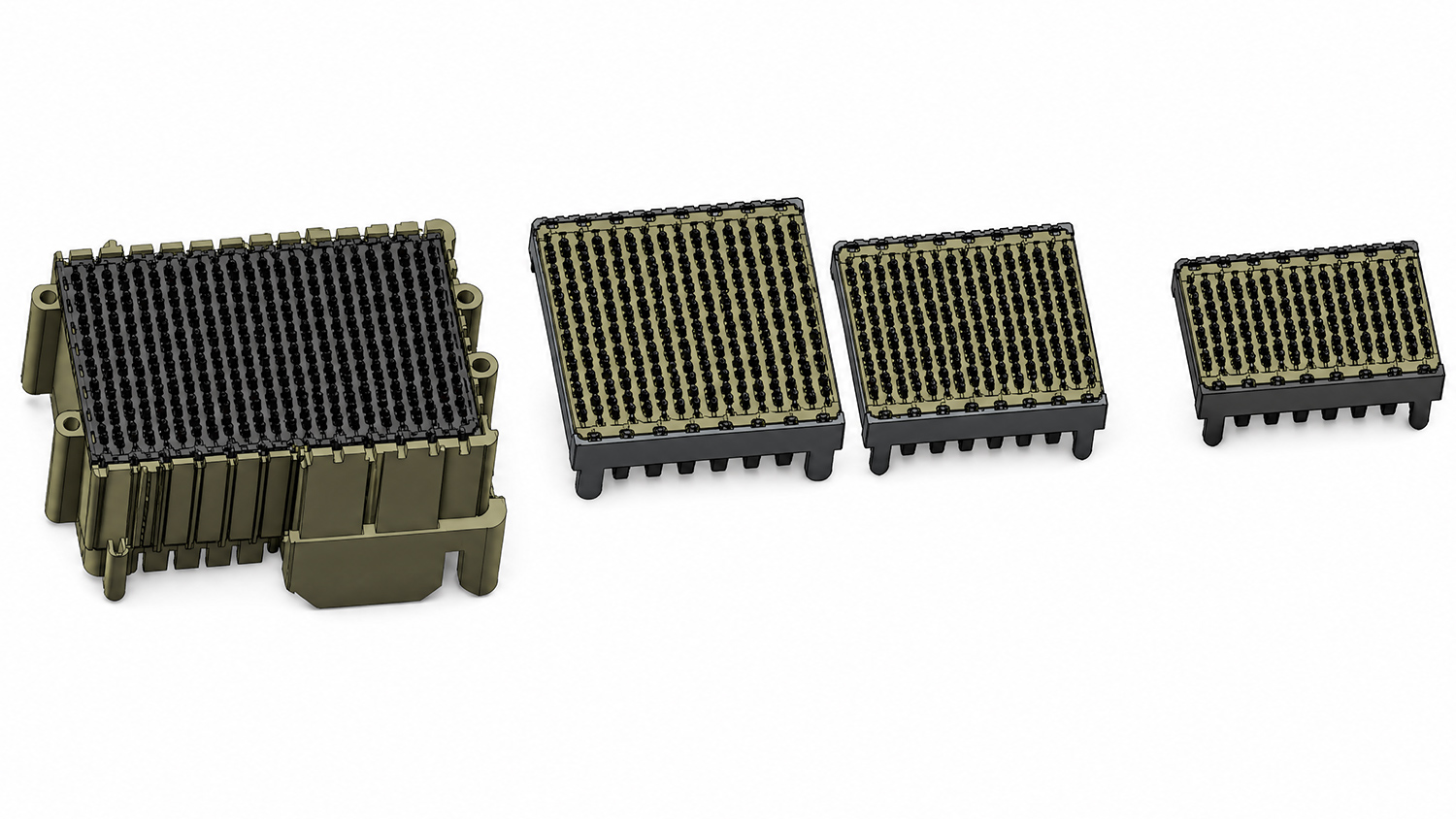

2. Applicable products: Specifically tailored for high-speed connector assembly of core switches, servers, and base station equipment.

3. Production line compatibility: Compatible with fully automatic production mode, supporting modular rapid changeover.

Core advantages

More introduction

Fully automatic high-speed backplane connector assembly and testing line

Technical parameters

Technical parameters

Item Parameters
Size 13550mm*2150mm*2400mm
CT ≤ 3 s
Capacity 1,020 pcs/h
Yield ≥ 99%
Operation rate ≥ 90%
