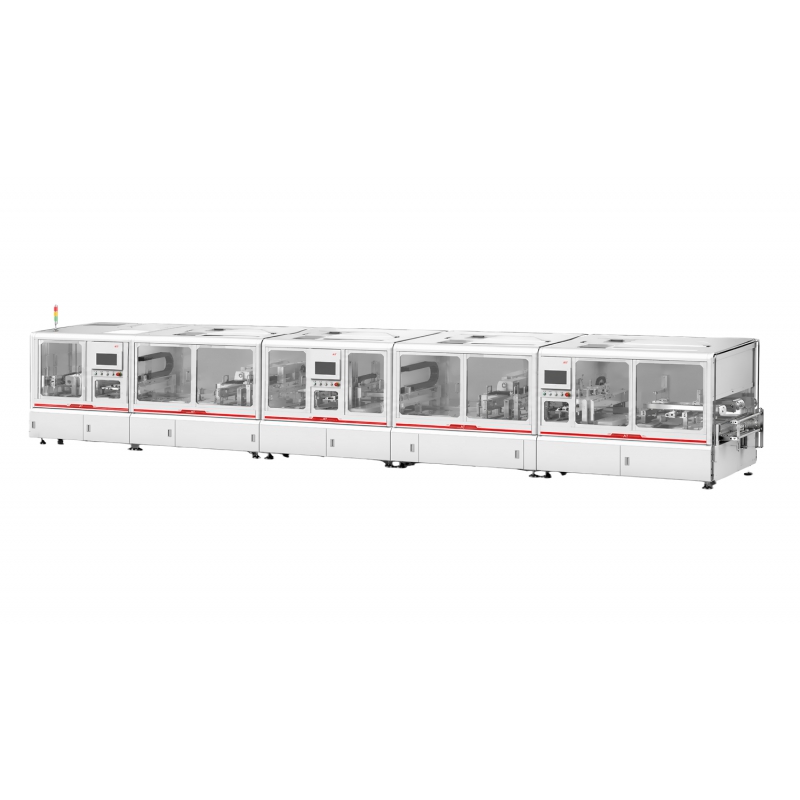

Fully Automatic FAKRA Board-End Connector Assembly and Inspection Line

Automotive Harnesses

Fully Automatic FAKRA Board-End Connector Assembly and Inspection Line

An automated assembly and electrical performance testing system specially designed for automotive high-frequency connectors (Fakra/SMB board ends). The equipment integrates precision pin crimping, visual alignment and radio frequency signal detection to ensure that the connector achieves zero signal loss and high mechanical reliability in the vehicle communication (GPS/5G/radar) system.

Service and support dial400 830 1117
Submit requirements
Product introduction

Product introduction

Application scenarios

Industry: Focus on automotive electronics, suitable for ADAS and vehicle networking modules.

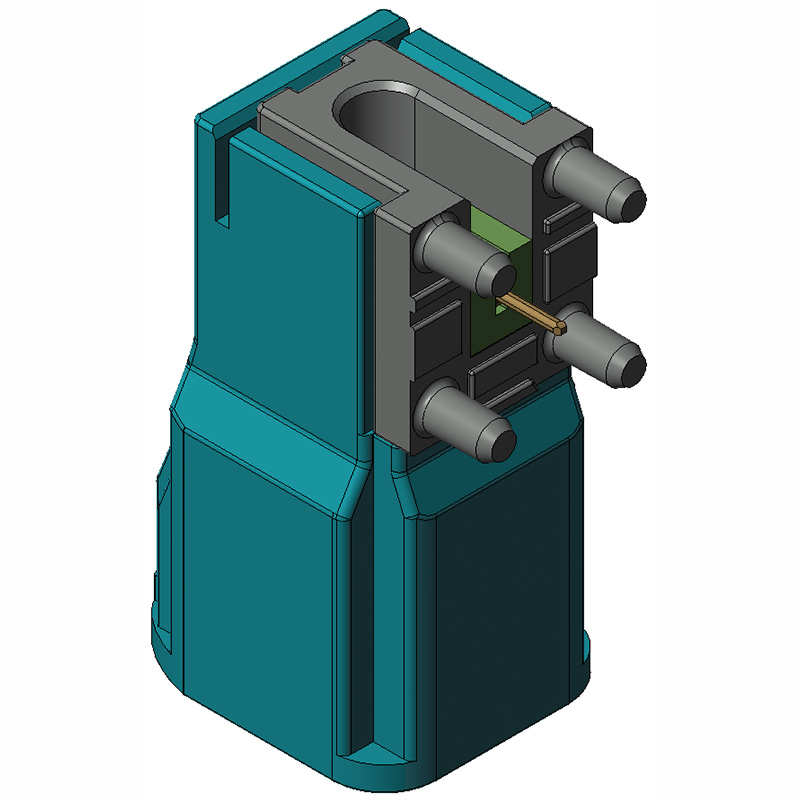

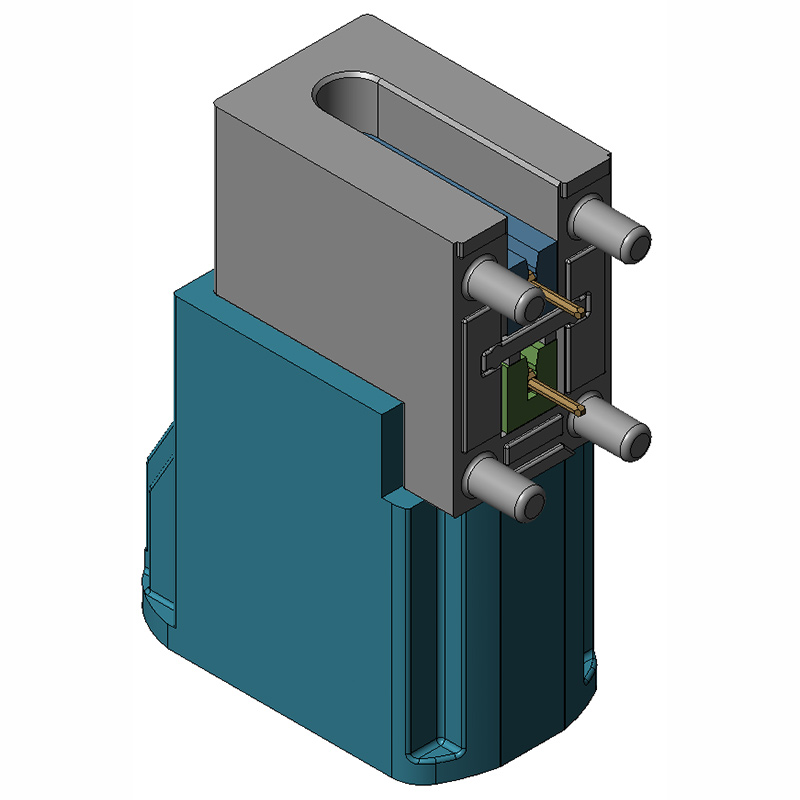

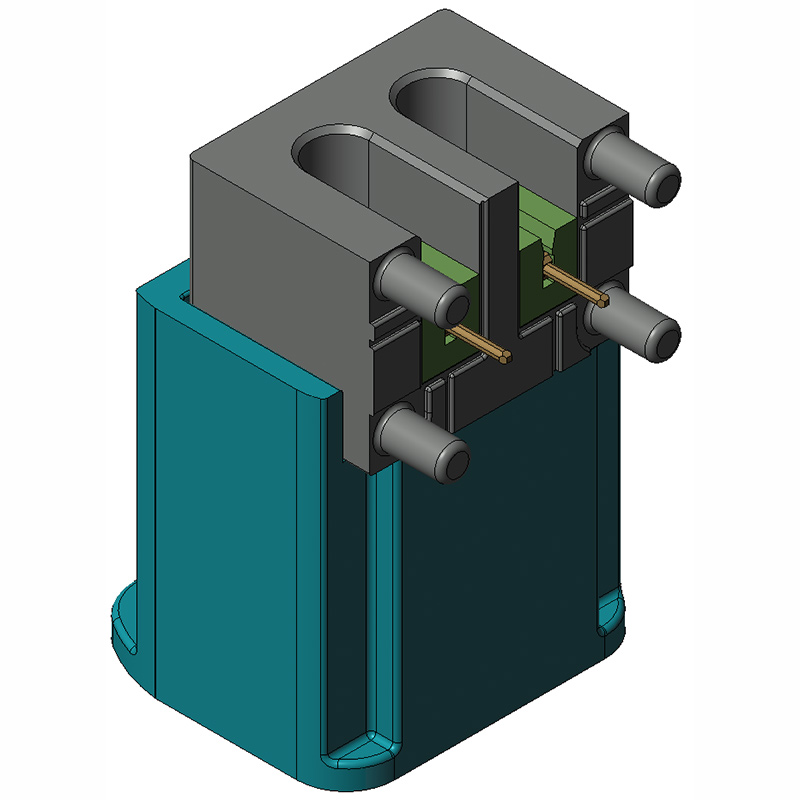

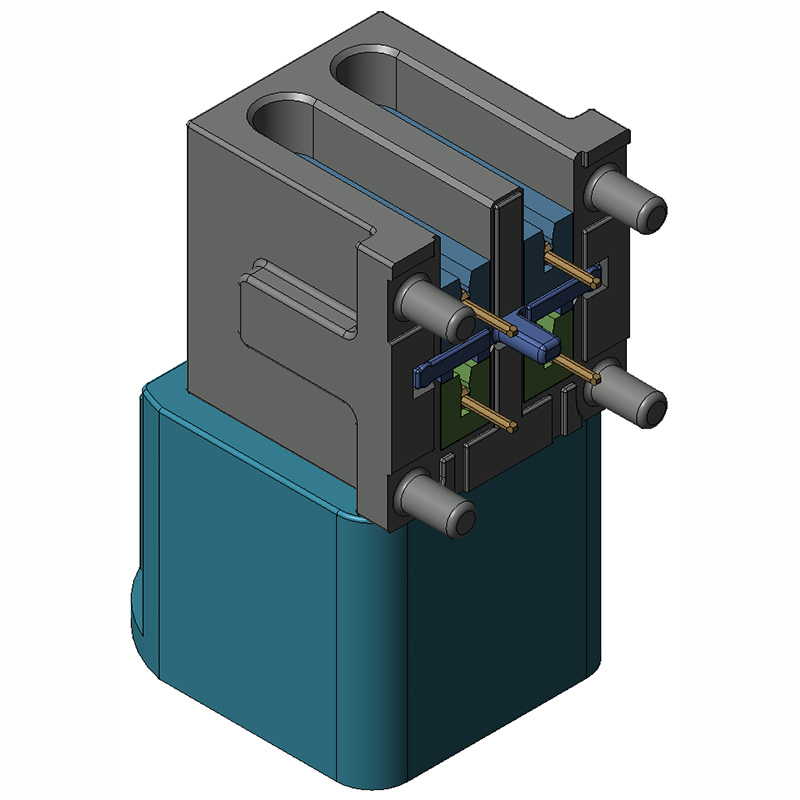

Applicable products: Customized for the assembly and inspection of Fakra/SMB board-end connectors (right angle/in-line)

Production line compatibility: Supports linkage with SMT production lines to achieve full online PCBA inspection

Core advantages

Technical parameters

Technical parameters

Item Parameters
Rated voltage AC 220V 50Hz
Working air pressure 0.5-0.7 MPa
Equipment power 15.4 kW 70 A
Material transfer Vehicle transfer
Dimensions L 5600 × W 1200 × H 1950 mm
CT ＜5s
OEE Equipment comprehensive rate ≥92%
Yield FPY ≥99.5%
Production capacity UPH up to 1300 pieces
