Fully Automatic Flex Flexible Board Placement Machine

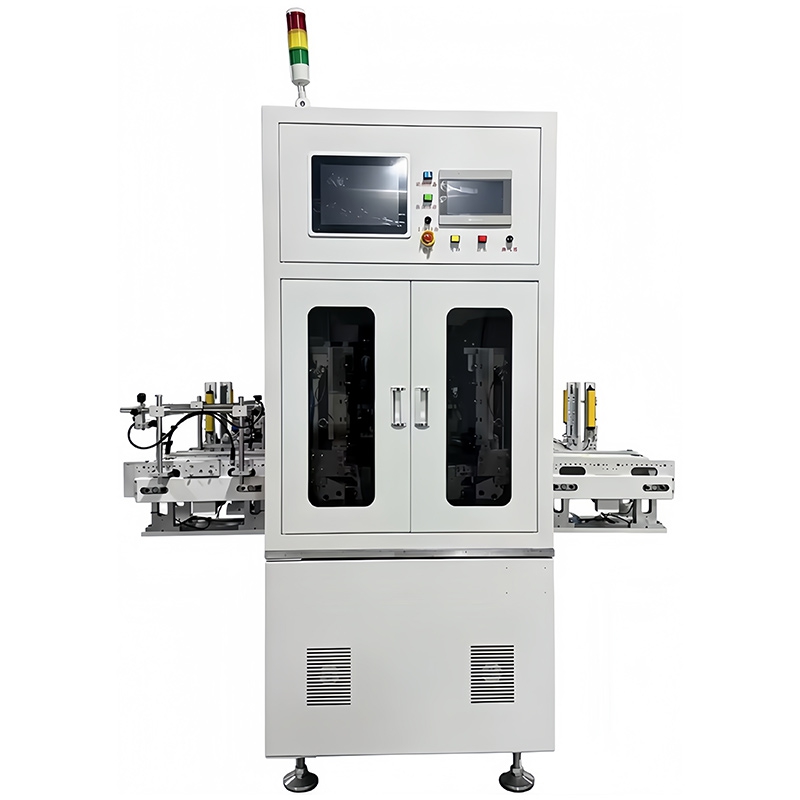

The fully automatic Flex flexible board placement machine is an automatic board placement equipment that integrates a tray loading system and high-precision pin positioning. Specially used for precision arrangement and automated processing of soft boards.

High-precision pin positioning technology ensures precise product positioning, significantly improves equipment utilization and reduces costs.

Service and support dial400 830 1117
Submit requirements
Product introduction

Product introduction

Application scenarios

1. Industry: Widely used in mobile communications, consumer electronics and other fields.

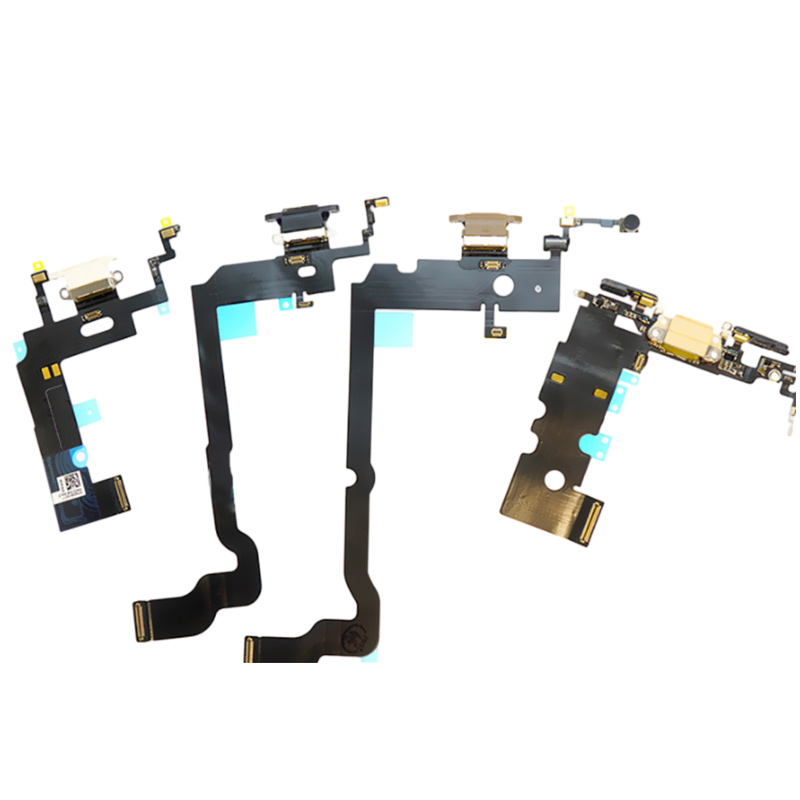

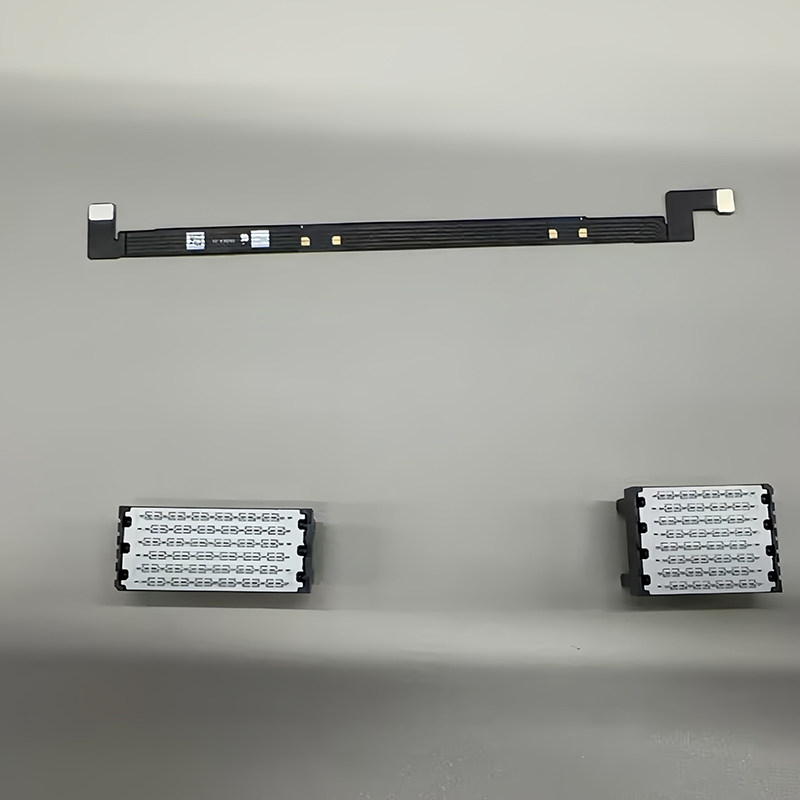

2. Applicable products: Specifically tailored for FPC mounting patches for iPhone screen/touch, camera, antenna/RF.

3. Production line compatibility: Compatible with fully automatic production mode, supporting quick switching of product types.

Core advantages

More introduction

Commonality:
Frames and runners of different product series can be shared


Quick switching:
The suction cup is positioned through the guide post and guide sleeve for quick switching


Quick switching:
The needle plate is quickly switched through the positioning of the guide post and guide bush

Technical parameters

Technical parameters

Item Parameters
Size 1500mm × 800mm × 2140mm
CT ≤20s
Capacity 54kpcs/h
Yield ≥99.9%
Operation rate ≥95%
