Fully Automatic Impel Backplane Connector Assembly Line

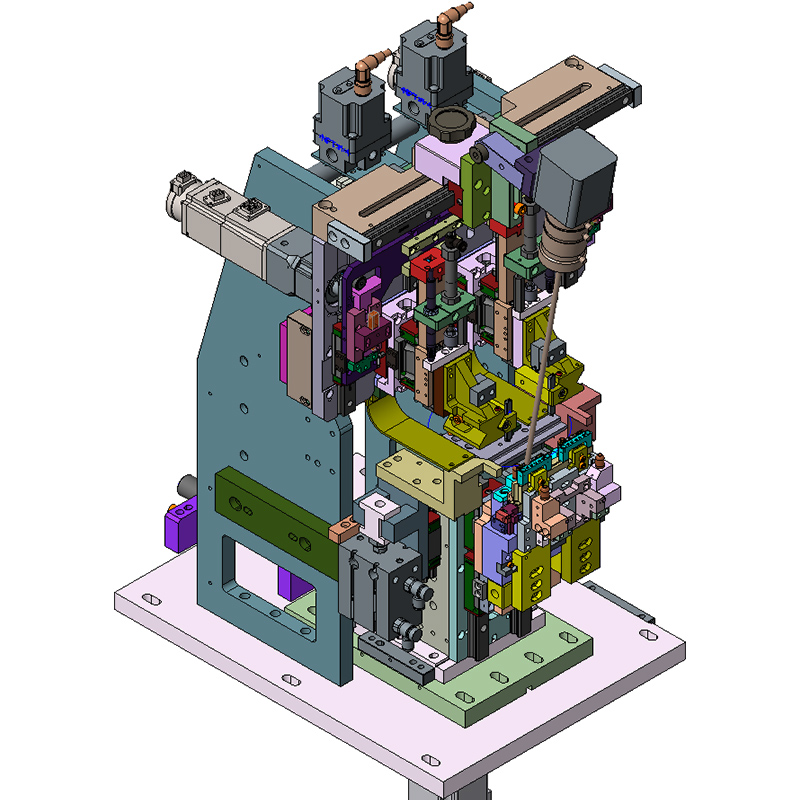

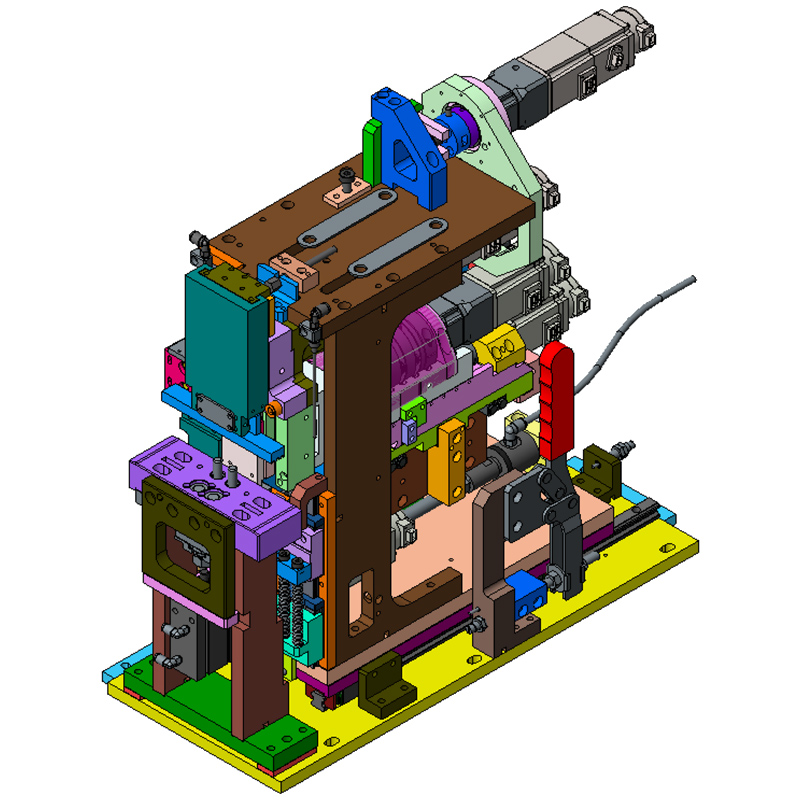

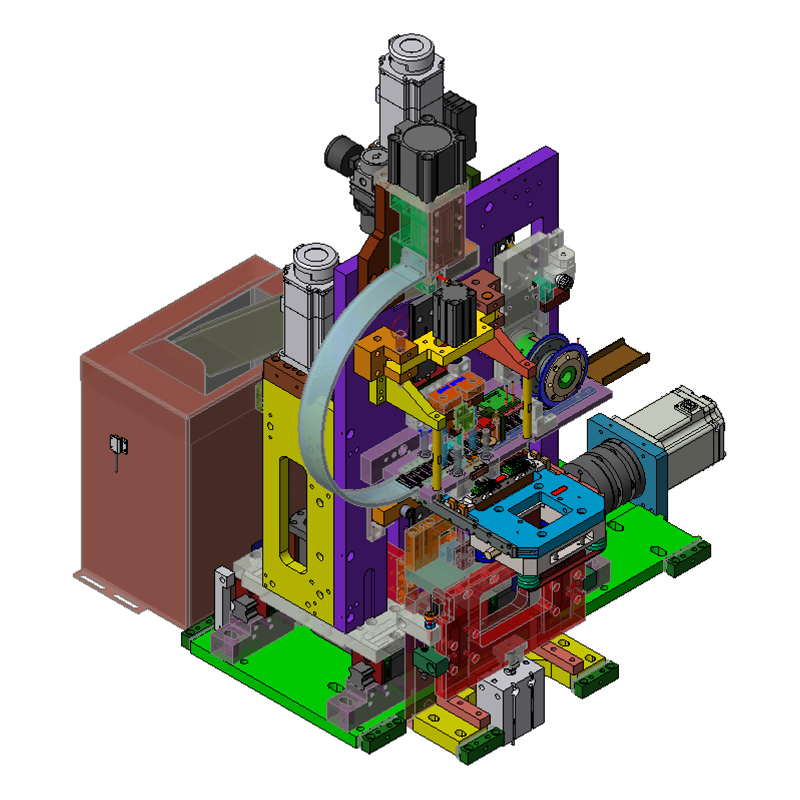

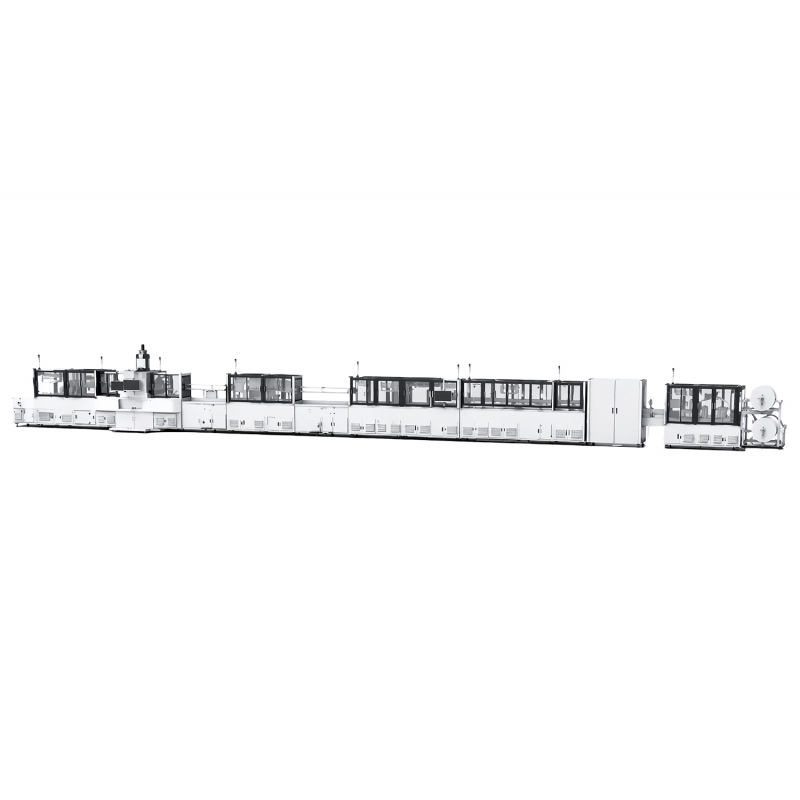

The Impel backplane connector automatic line is a full-process integrated intelligent manufacturing line specially built for the Molex Impel series of high-speed backplane connectors. The core is to achieve high-speed and high-precision production of key processes such as wafer assembly, pre-processing, resistance welding, shield assembly, and high-pressure molding. It is the core manufacturing equipment for 40Gbps + high-speed backplane connectors in AI servers, data centers, high-speed communication equipment and other fields.

Service and support dial400 830 1117
Submit requirements
Product introduction

Product introduction

Application scenarios

1. Industry: used in AI high-speed wiring harness, high-speed backplane interconnection, data center high-speed signal connection and other fields.

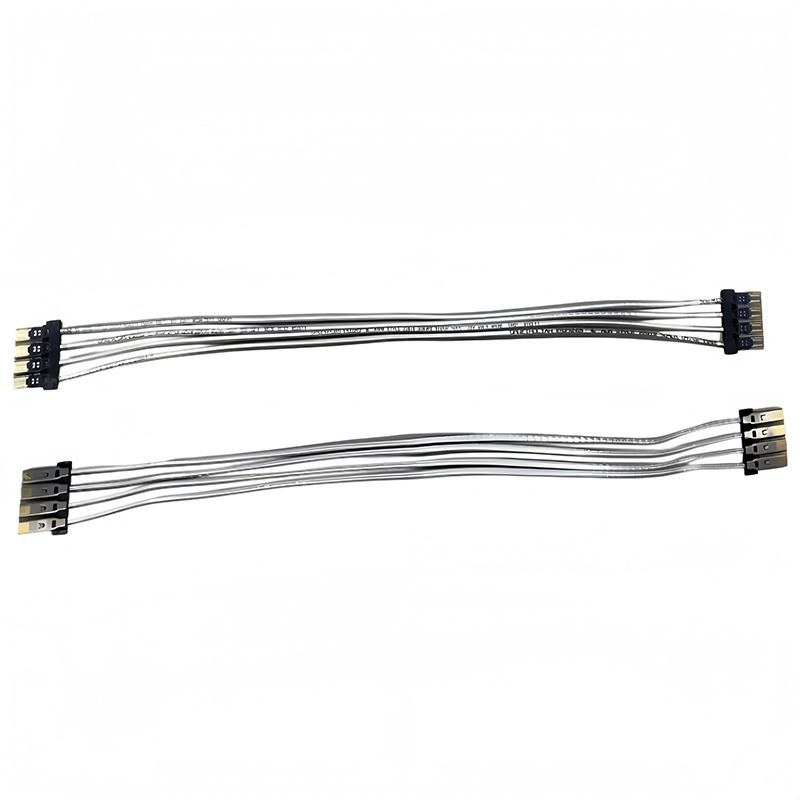

2. Applicable products: Full-process intelligent manufacturing equipment tailored for the automated production of new generation high-speed backplane connector products such as Impel Gen5/Gen6, which deeply matches the core structure, performance requirements and mass production needs of this series of products.

3. Production line compatibility: Compatible with semi-automatic & fully automatic production modes, supports stand-alone operation & full line integration, and can also be seamlessly connected with back-end testing equipment.

Core advantages

More introduction

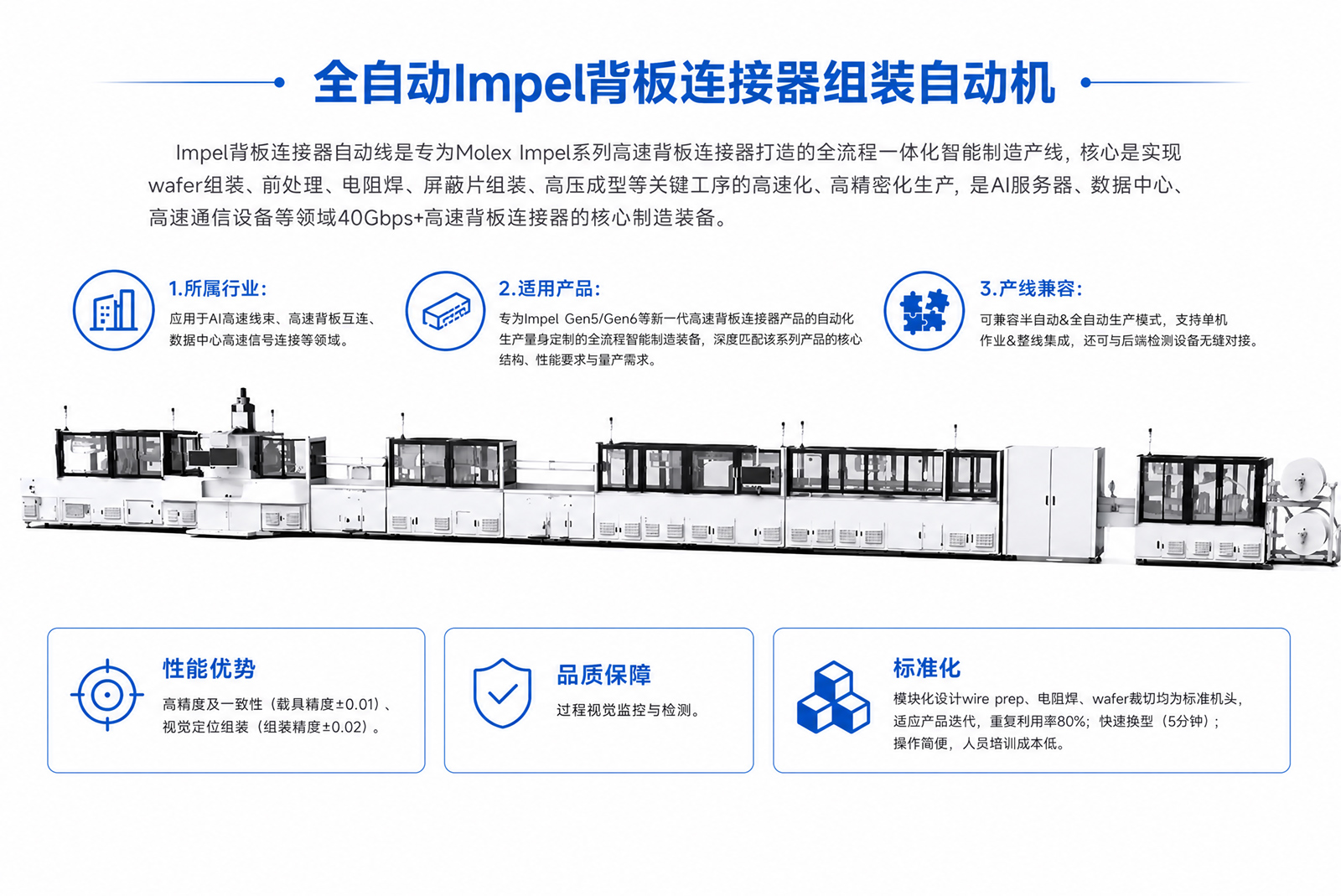

Fully automatic Impel backplane connector assembly automatic machine

Technical parameters

Technical parameters

Item Parameters
Size 28000mm × 1200mm × 2000mm
CT ≤15s
OEE 85%
Yield 99%
Equipment power ≤50kW
Working voltage AC 380V±10%, 50/60Hz, three-phase five-wire
Working air pressure 0.5–0.7MPa
Control method PLC + Industrial computer + visual positioning system
Safety protection Safety door, emergency stop, grating, safety interlock
Communication interface EtherCAT/PROFINET/Ethernet
Integrate internationally renowned brands

Resistance welding uses Miaki power supply HF2500A;

CO2 laser machine uses Keyence MLZ9620 and laser welding machine uses Han’S FP150
