Fully Automatic High-Speed Backplane Connector Assembly Line

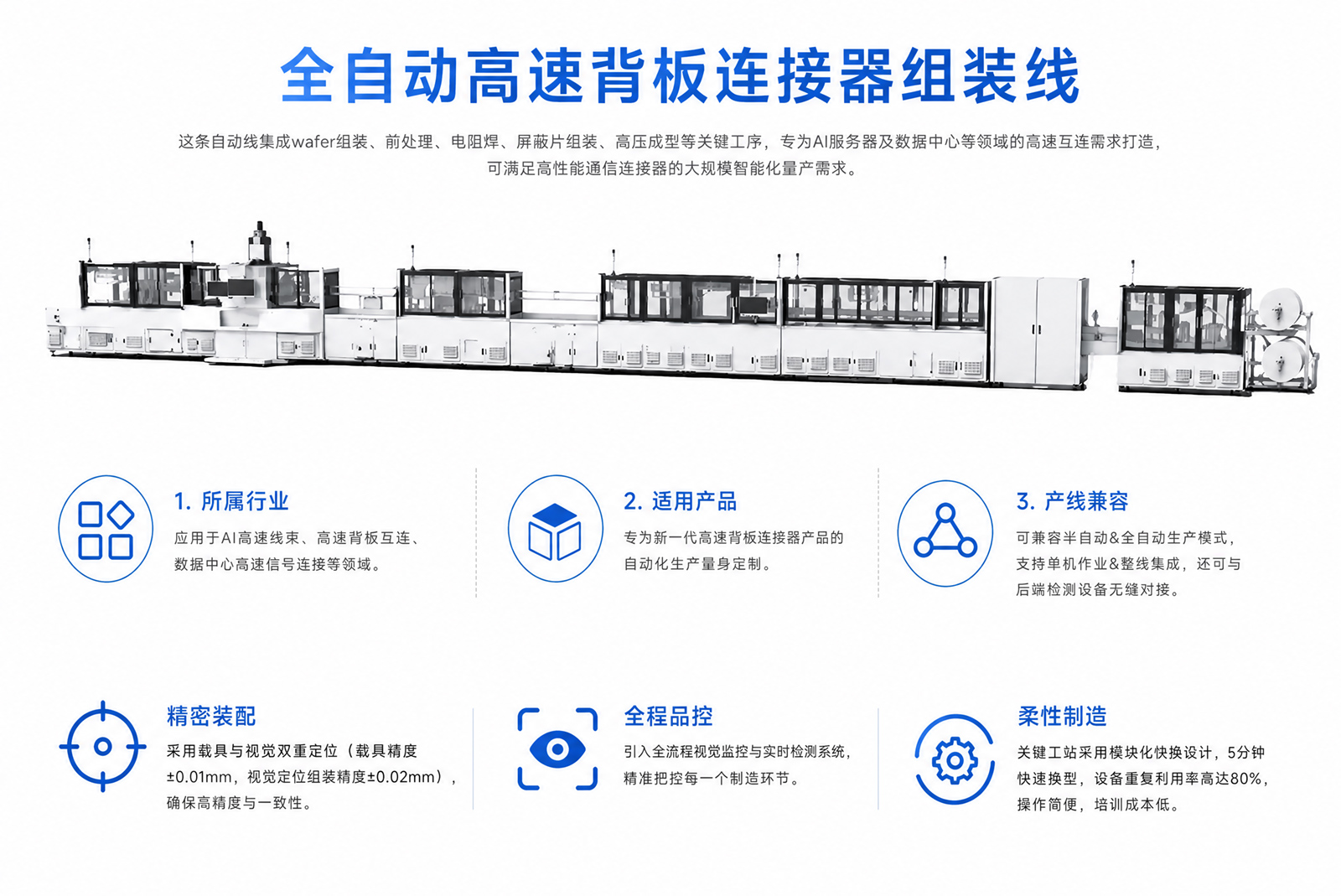

This automatic line integrates key processes such as wafer assembly, pre-processing, resistance welding, shield assembly, and high-pressure molding. It is specially built for the high-speed interconnection needs in fields such as AI servers and data centers, and can meet the large-scale intelligent mass production of high-performance communication connectors.

Service and support dial400 830 1117
Submit requirements
Product introduction

Product introduction

Application scenarios

1. Industry: used in AI high-speed wiring harness, high-speed backplane interconnection, data center high-speed signal connection and other fields.

2. Applicable products: specially tailored for the automated production of new generation high-speed backplane connector products

3. Production line compatibility: compatible with semi-automatic & fully automatic production modes, supports stand-alone operation & full line integration, and can also be seamlessly connected with back-end testing equipment.

Core advantages

More introduction

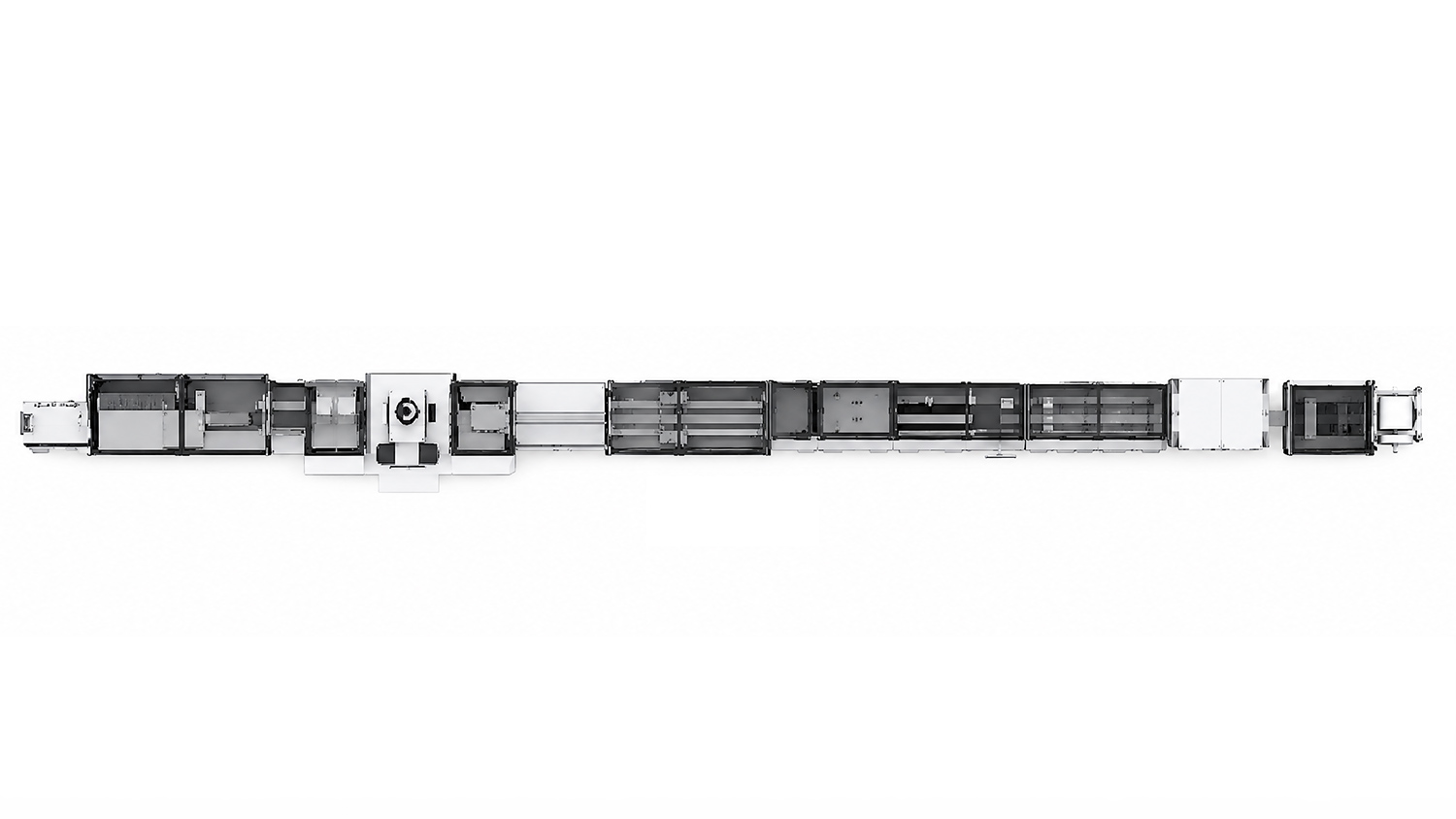

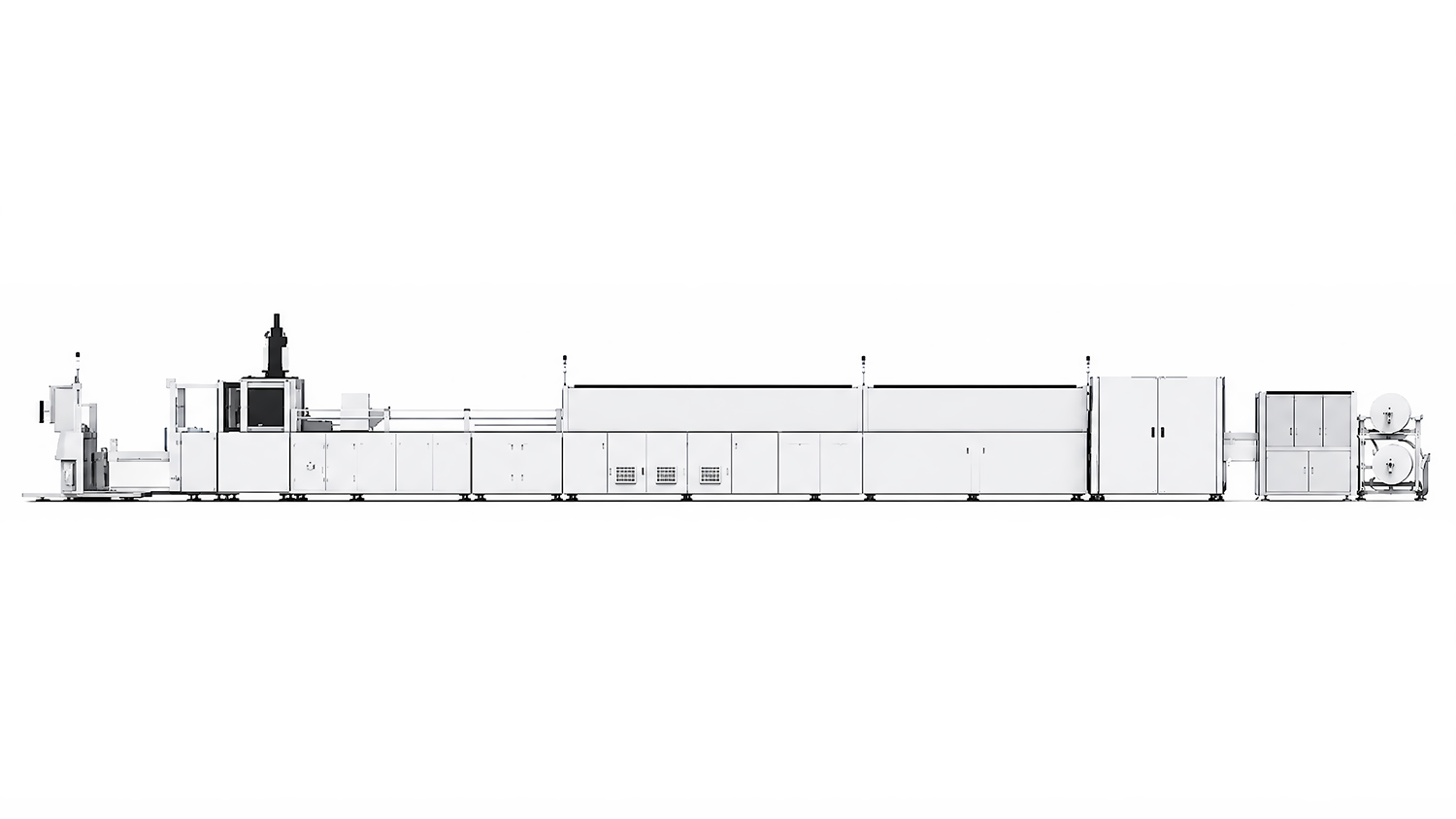

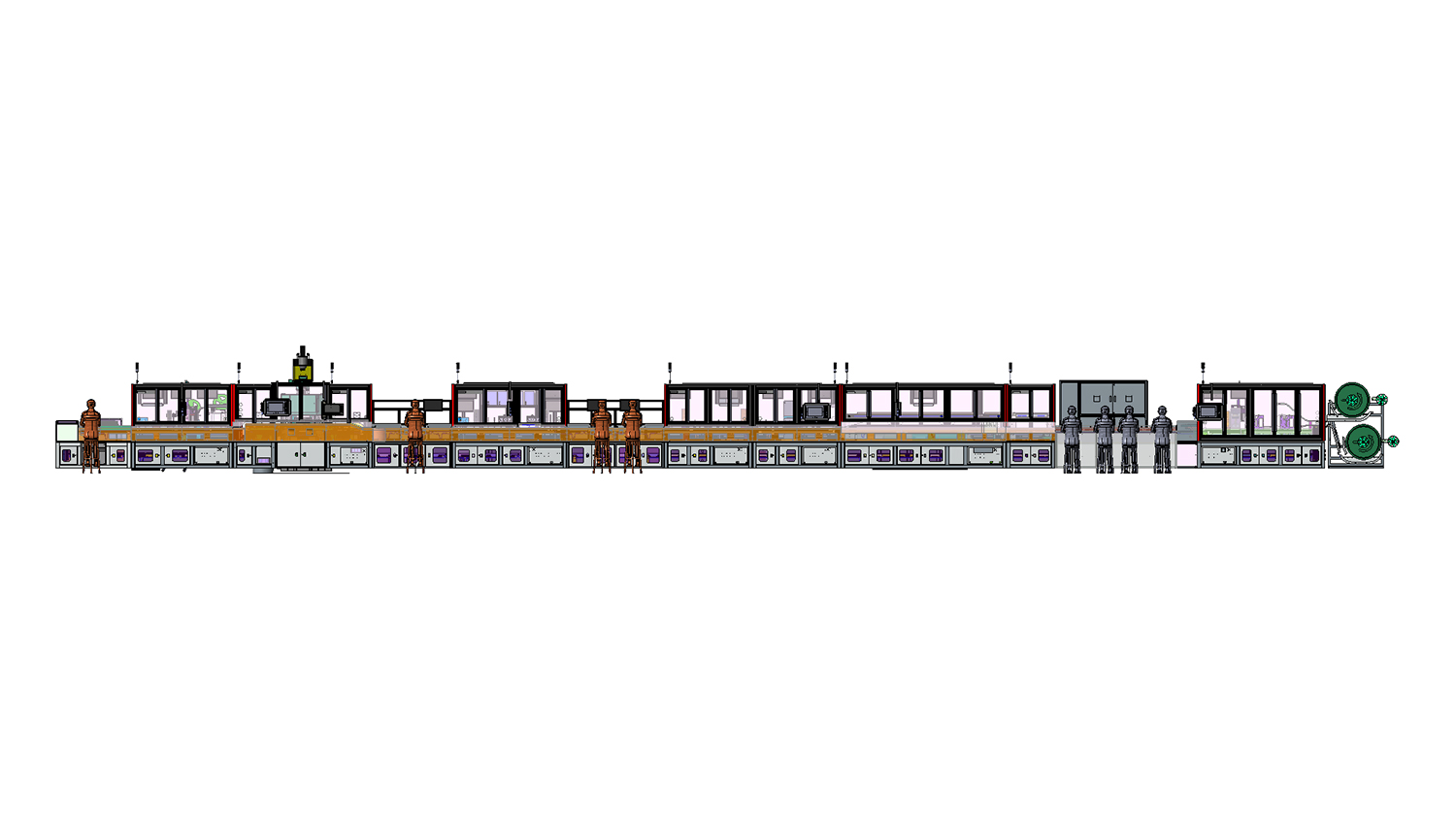

Fully automatic high-speed backplane connector assembly line

Technical parameters

Technical parameters

Item Parameters
Size 28000mm × 1200mm × 2000mm
CT ≤15s
OEE 85%
Yield 99%
Equipment power ≤50kW
Working voltage AC 380V±10%, 50/60Hz, three-phase five-wire
Working air pressure 0.5–0.7MPa
Control method PLC + Industrial computer + visual positioning system
Safety protection Safety door, emergency stop, grating, safety interlock
Communication interface EtherCAT/PROFINET/Ethernet
