Hot Bar Soldering (Pulse Heat Reflow) Explained: Process Overview and Typical Applications

1. Process Definition

Hot bar soldering, also known as pulse heat reflow soldering, is a high-precision thermocompression process that applies localized heat and pressure.

The process uses pulsed electrical current to generate Joule heat in a high-resistance alloy thermode. Under controlled pressure, the solder paste melts and wets the pads. Pressure is then maintained during rapid cooling and solidification, creating precise electrical interconnections between FPC/FFC flexible circuits, ultra-fine-pitch cables, miniature terminals, and rigid PCBs.

It is widely used in the assembly of high-density, fine-pitch, and heat-sensitive electronic products, providing a precision alternative to manual soldering irons and full-board reflow soldering.

2. Core Heating Mechanism: Closed-Loop Temperature Control

1. The equipment uses a high-resistance molybdenum-alloy or titanium-alloy thermode as the heating element. Electrical resistance generates Joule heat almost instantaneously, unlike a conventional soldering iron that remains continuously heated. A high-precision thermocouple integrated into the thermode monitors the temperature of the soldering area in real time and feeds the data back to the power controller, creating a closed-loop temperature-and-current control system.

2. The core temperature-control sequence is:

   Rapid pulse heating → Constant-temperature solder wetting → Power-off and rapid cooling

   High temperatures are generated only during the soldering cycle, while the thermode remains near room temperature when inactive. This mechanism minimizes the heat-affected zone and helps prevent thermal deformation or damage to surrounding heat-sensitive components, plastic substrates, and flexible circuit boards. Temperature-control accuracy can reach ±3–5°C.

3. Standard Operating Process

Pulse heat reflow soldering follows a standardized sequence:

Alignment → Pressure application → Heating → Solder reflow → Cooling under pressure → Reset

The most critical requirement is to maintain pressure throughout the cooling stage to prevent solder-joint defects.

1. Preparation and alignment:
Apply a controlled amount of solder paste to the PCB pads and pre-bake the components to remove moisture. Clean oxidation from the pads, precisely align the FPC or FFC with the PCB soldering area, and secure the assembly in a fixture to maintain coplanarity.

2. Constant-pressure contact:
A servo actuator or pneumatic cylinder drives the thermode vertically downward and applies a preset constant pressure. This ensures uniform contact across the entire soldering surface without insufficient or uneven pressure.

3. Pulse heating and soldering:
The power supply is activated to heat the thermode rapidly to the specified peak temperature. The temperature is maintained for a defined period, allowing the solder paste to reflow completely and wet the pads on both the flexible circuit and rigid PCB, forming a reliable metallurgical bond.

4. Cooling and solidification under pressure:
The pulse current is switched off while the original pressure is maintained. Forced-air cooling rapidly lowers the temperature until the solder has completely solidified.

5. Thermode retraction and unloading:
Once the temperature has fallen to a safe level and the solder joints are fully solidified, the thermode retracts. This completes the simultaneous soldering of the entire row of terminals.

Critical Process Restriction: Releasing the pressure or lifting the thermode before the solder has fully solidified can directly cause insufficient soldering, cracked joints, terminal misalignment, solder bridging, and other serious defects.

4. Core Precision-Control Features

The process precisely coordinates the three critical parameters of temperature, pressure, and time, enabling high-precision soldering for dense, miniature components.

1. Highly controlled heat input:
Rapid heating and cooling concentrate heat within the soldering area, minimizing the thermal impact on surrounding components. The process is suitable for heat-sensitive products containing plastics, flexible substrates, and optical components.

2. High process consistency:
An entire row of terminals is heated and formed simultaneously. This minimizes common manual-soldering problems such as temperature variation, inconsistent solder-joint size, open joints, and missed solder joints, significantly improving production yield and stability.

3. Suitable for fine-pitch applications:
The process can reliably solder terminals with pitches as fine as 0.2 mm, supporting high-density assembly requirements in consumer electronics, optical transceivers, and medical devices.

4. Strong traceability:
Process parameters can be recorded and stored throughout production, supporting Design of Experiments (DOE), process optimization, and quality traceability in standardized mass production.

5. Typical Industry Applications

Case 1: FPC Soldering for Smartphone and Wearable Camera Modules

High-resolution CMOS/CCD camera modules used in smartphones, TWS earbuds, and smartwatches contain image sensors and optical structures that are highly sensitive to heat and may not tolerate the temperatures of full-board reflow soldering. Manual soldering can also cause terminal misalignment, lens deformation, and image-sensor damage.

Hot bar soldering concentrates heat precisely within the pad area without damaging the optical structure or image sensor. It can complete a soldering cycle in ≤1.5 seconds and reliably join fine-pitch cables with a 0.25 mm pitch. In mass production, yields can remain above 99.8%, making it a widely used process in camera-module assembly.

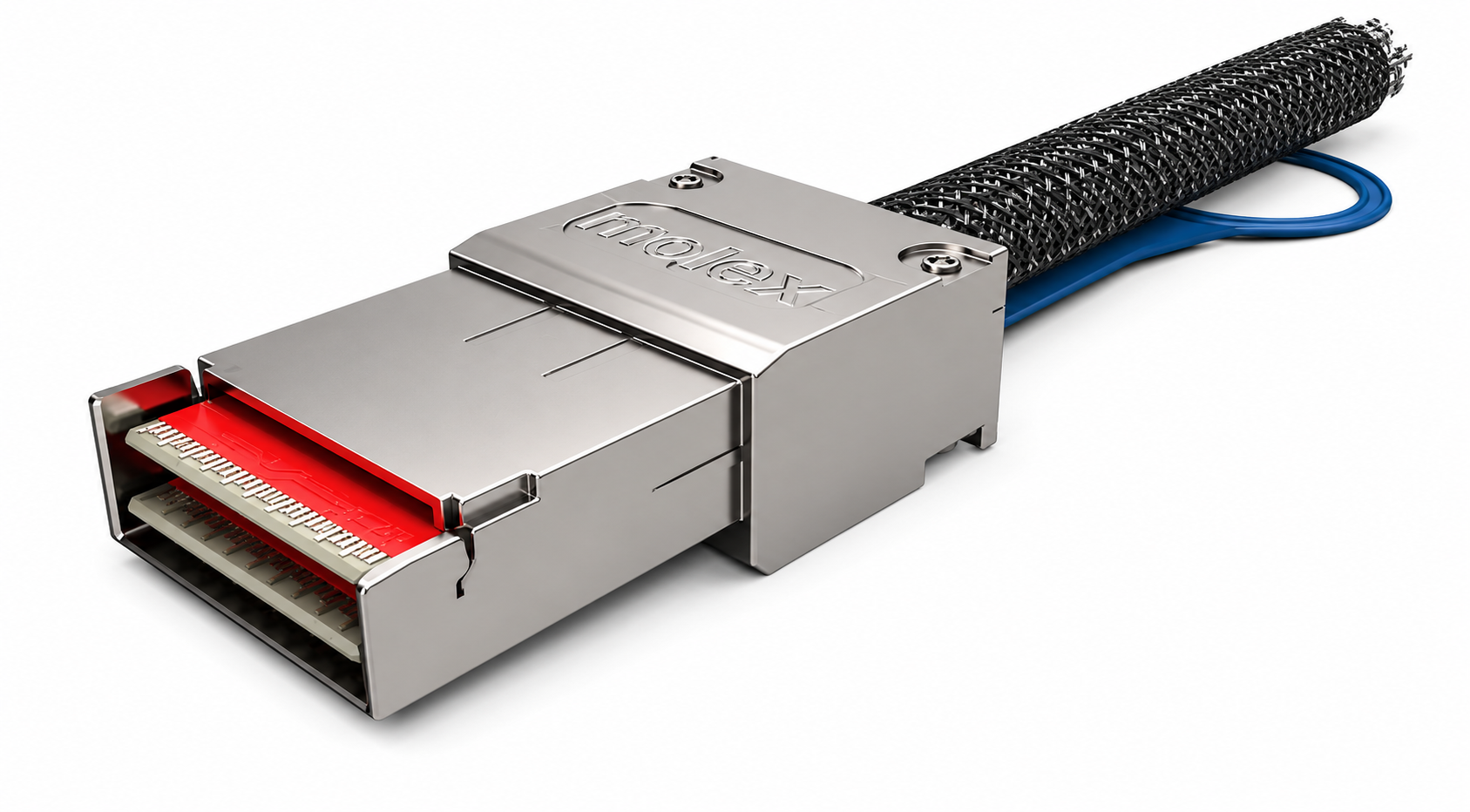

Case 2: Precision FPC Interconnection in High-Speed Optical Transceivers

Internal FPC interconnections in 40G and 100G high-speed optical transceivers require highly consistent solder joints, stable impedance, and minimal thermal damage. Conventional soldering may cause impedance variation or substrate deformation, adversely affecting high-speed signal transmission.

By optimizing hot bar temperature, pressure, and dwell time, manufacturers can compensate for differences in thermal capacity between large and small pads while reducing localized overheating and insufficient wetting. In pilot production, yields can exceed 99%, with no solder-mask discoloration or insufficient solder joints, helping meet the stringent reliability and service-life requirements of communications equipment.

Case 3: High-Volume Soldering of Automotive FFC/FPC Cables

FFC and FPC connections in automotive displays, radar systems, and lighting control modules require highly consistent solder joints with strong resistance to vibration and aging.

After replacing manual soldering with pulse heat reflow, an automotive component manufacturer increased single-station assembly efficiency by 40%. The process also improved solder-joint tensile strength and resistance to high- and low-temperature cycling, while reducing poor contact and potential in-vehicle failures associated with manual soldering. It is suitable for automotive production environments with stringent quality and reliability requirements.

Case 4: Precision Soldering of Miniature Medical Modules

Miniature FPC interconnections in minimally invasive medical devices and wearable health-monitoring modules demand exceptional process safety, stability, and defect control.

Closed-loop hot bar soldering precisely controls heat input to prevent damage to delicate component structures. It can achieve 100% visual inspection acceptance, stable electrical performance, and mass-production yields of up to 99.9%, supporting the high-reliability manufacturing requirements of medical devices.
