Connector Automation
自动装弹片机

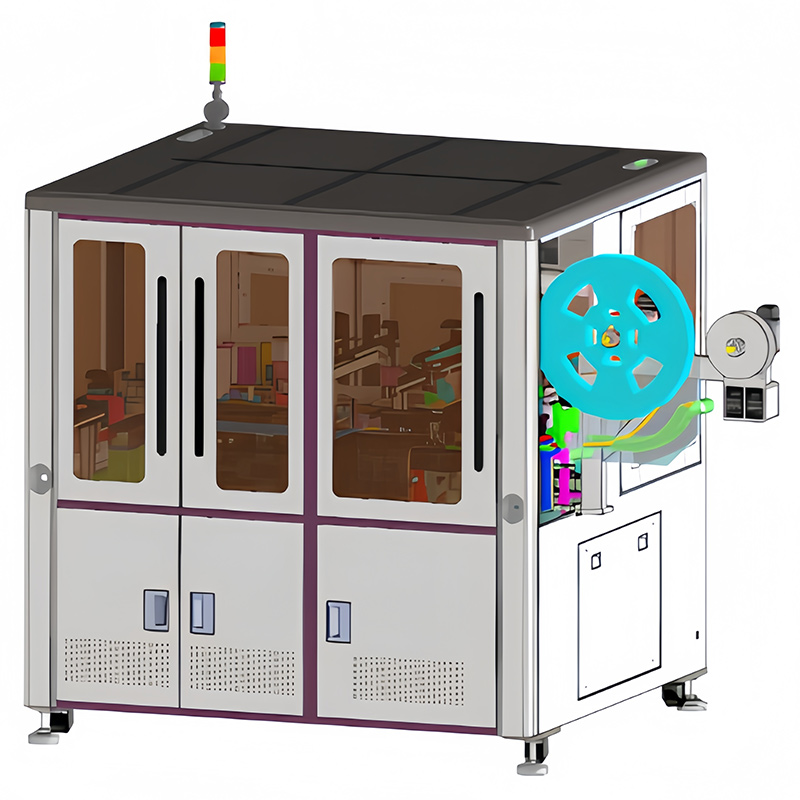

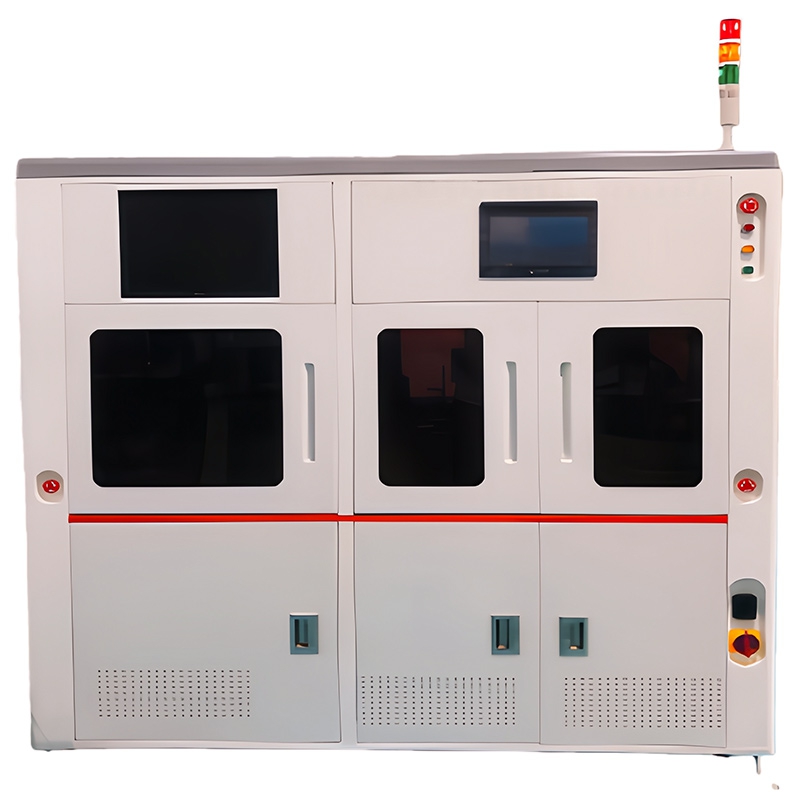

D325 自动装弹片/Clip 插入设备，通过全自动、视觉引导和高精度控制替代传统人工操作，实现弹片/端子插入与上下料包装。
服务与支持
拨打
Product Introduction
Product Introduction
Applications

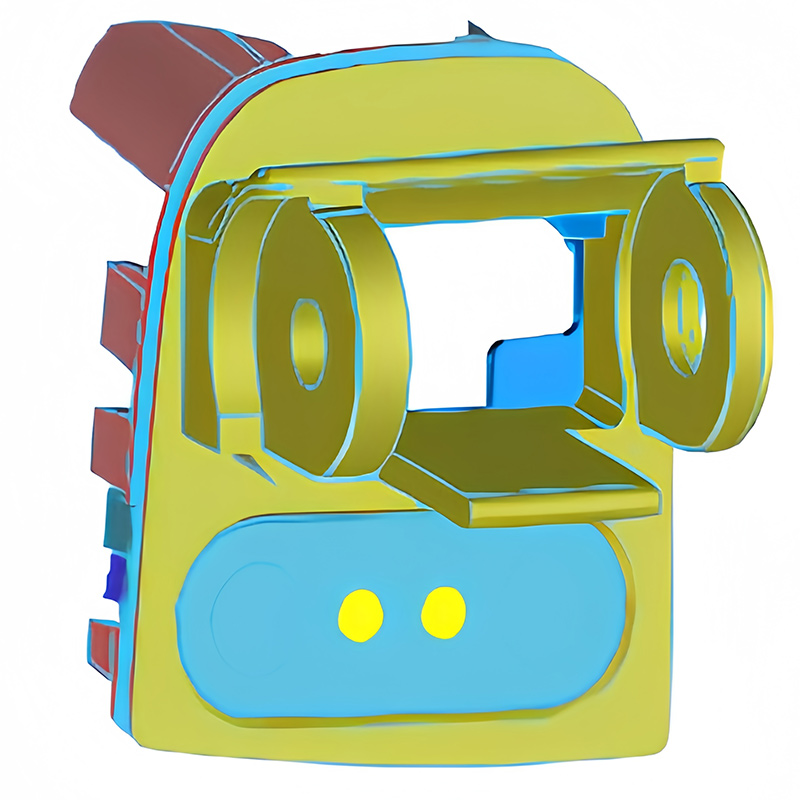

连接器弹片/Clip 自动插入。
适合需要 AOI 视觉引导、Tray 上下料和自动包装的连接器工站。
Key Advantages
- 配备 AOI 视觉引导系统，提高插入精度。
- 进料和出料采用 Tray 上下料系统，实现自动上料和包装。
- CT<3.5s/pcs，良率>98%。
Technical Parameters
Technical Specifications
| 项目 | 参数 |
|---|---|
| 额定电压 | AC220V 50Hz |
| 设备功率 | 18 kW 81 A |
| 工作气压 | 0.5-0.7 MPa |
| 物料传输方式 | 伺服电机驱动送料 |
| 标准件 | 客户指定品牌 |
| 尺寸 | L2200 × W1400 × H1850 mm |
| 设备精度 | X轴重复定位精度：±0.01 mm；Y轴重复定位精度：±0.01 mm；Z轴重复定位精度：±0.01 mm；设备装配精度：±0.01 mm |
| CT/节拍 | <3.5s/pcs |
| 稼动率 | >90% |
| 良率 | >98% |
