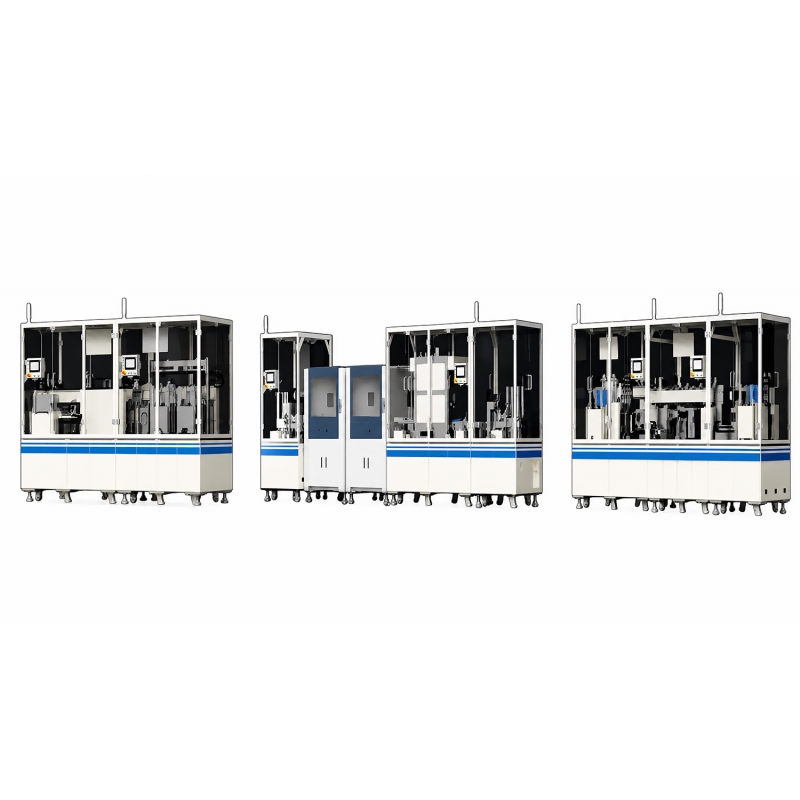

Fully Automatic PoP Connector Electroplating Pre/Post-Processing Integrated Line

The fully automatic PoP connector electroplating pre/post-processing integrated line is specially designed for Apple AirPods Plug series connectors. It covers hanging, shielding, glue removal, hanging and other process automation operations, effectively reducing manual dependence, improving production efficiency and product consistency, and meeting the mass production requirements of high-end precision connector electroplating.

Service and support dial400 830 1117
Submit requirements
Product introduction

Product introduction

Application scenarios

1. Industry: used in electroplating of consumer electronics precision products and other fields.

2. Applicable products: Full-process intelligent manufacturing equipment tailored for automated production of top-hanging, dispensing, masking, and bottom-hanging in the Airpods plug electroplating process.

3. Production line compatibility: integrated into the front-end, middle-end and back-end production of the electroplating line

Core advantages

More introduction

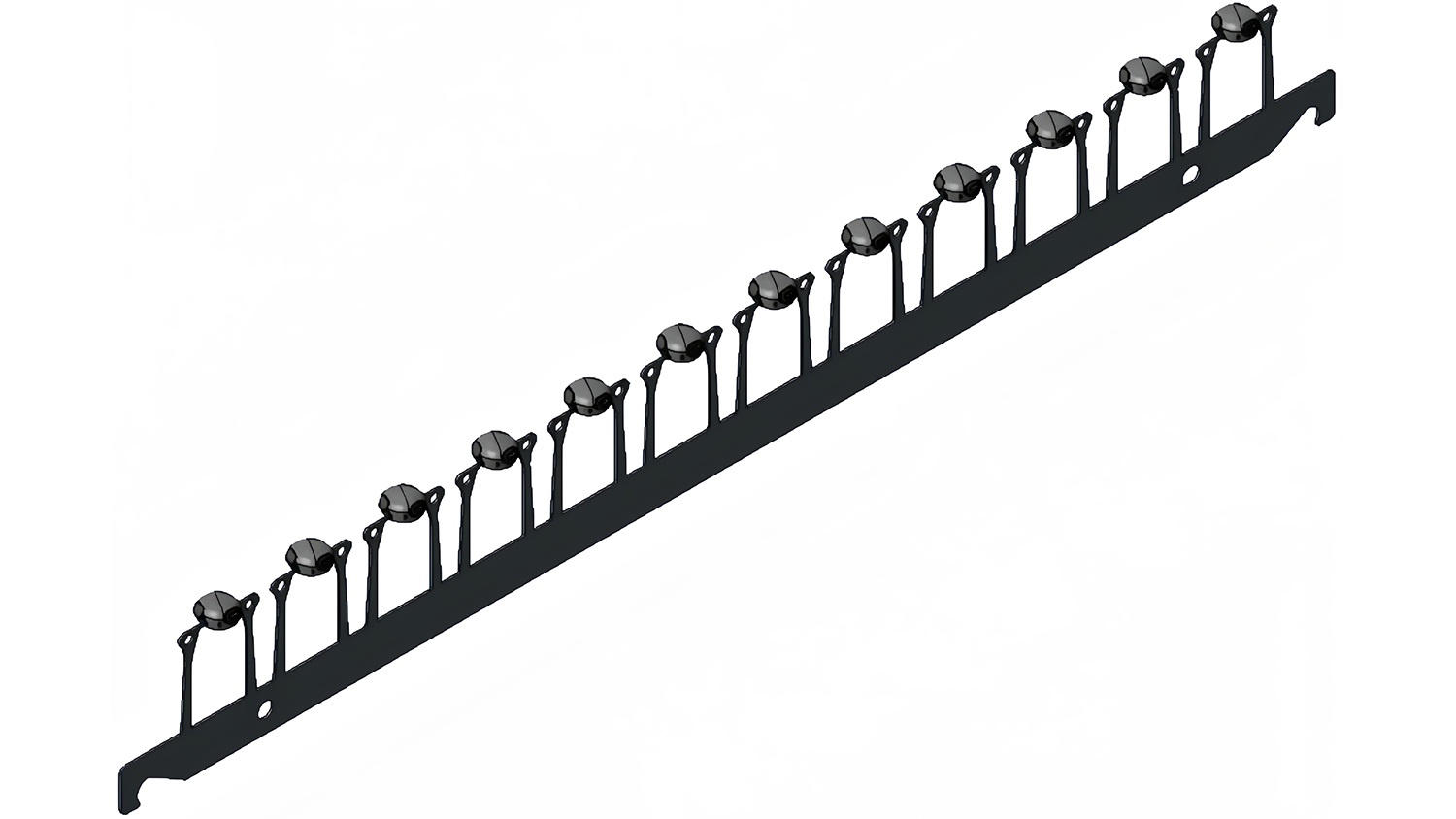

Precision tooling design

Relying on the exquisite rack structure design to achieve precise positioning and reliable clamping of products, taking into account the requirements of automated circulation and electroplating process, reducing the defect rate;

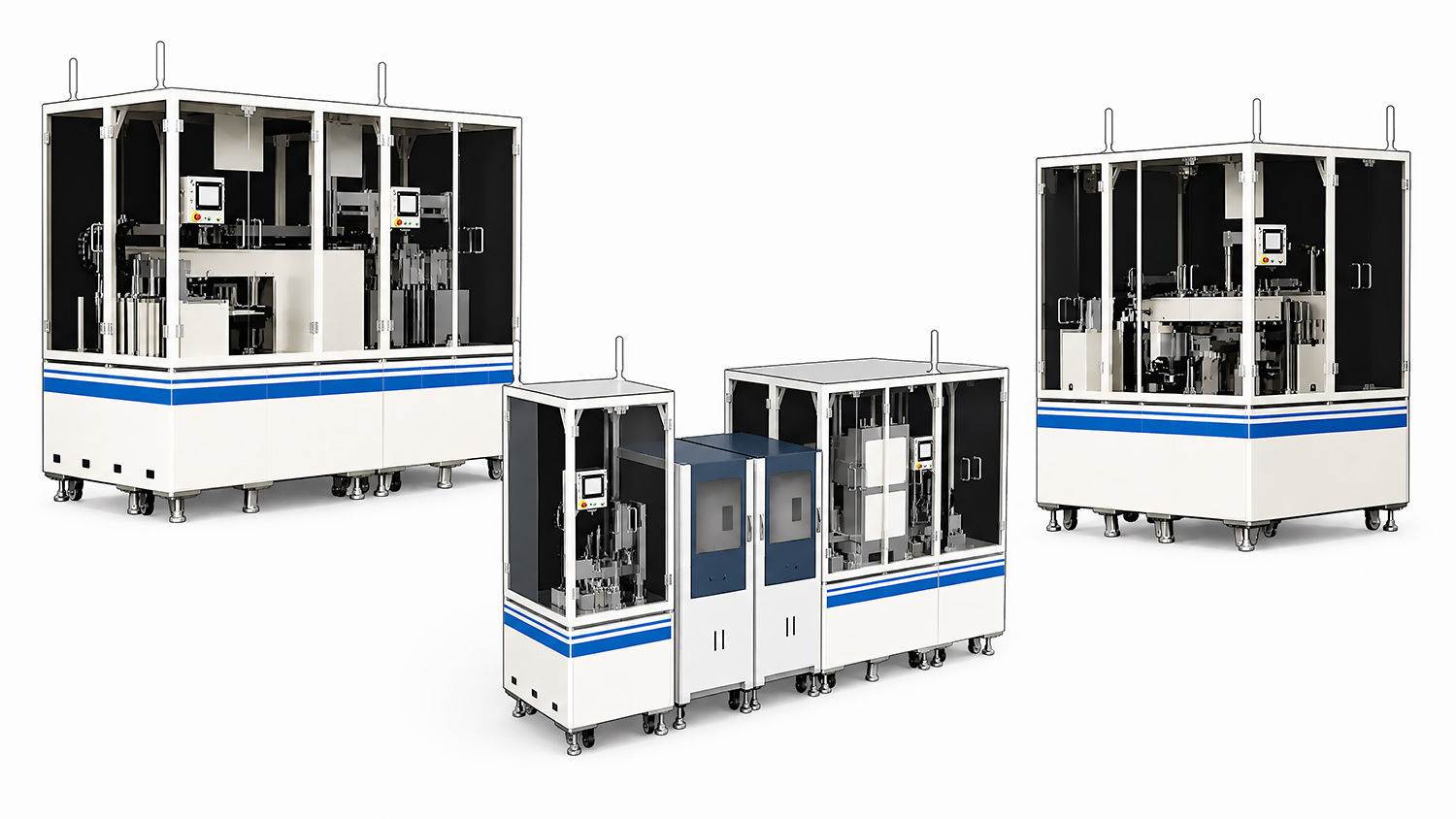

Fully automatic PoP connector electroplating pre/post-processing integrated line

Technical parameters

Technical parameters

Project Parameter
Size 11000mm*1200mm*2000mm
CT ≤ 1.3 s
OEE 90%
Yield 99.5%
Operating voltage AC 380V±10%, 50/60Hz
Working air pressure 0.5–0.7 MPa
Equipment power consumption ≤ 45 kW
Communication interface EtherCAT, PROFINET, and TCP/IP
Safety standards CE/ISO 13849-1, safety grating + safety door interlock
