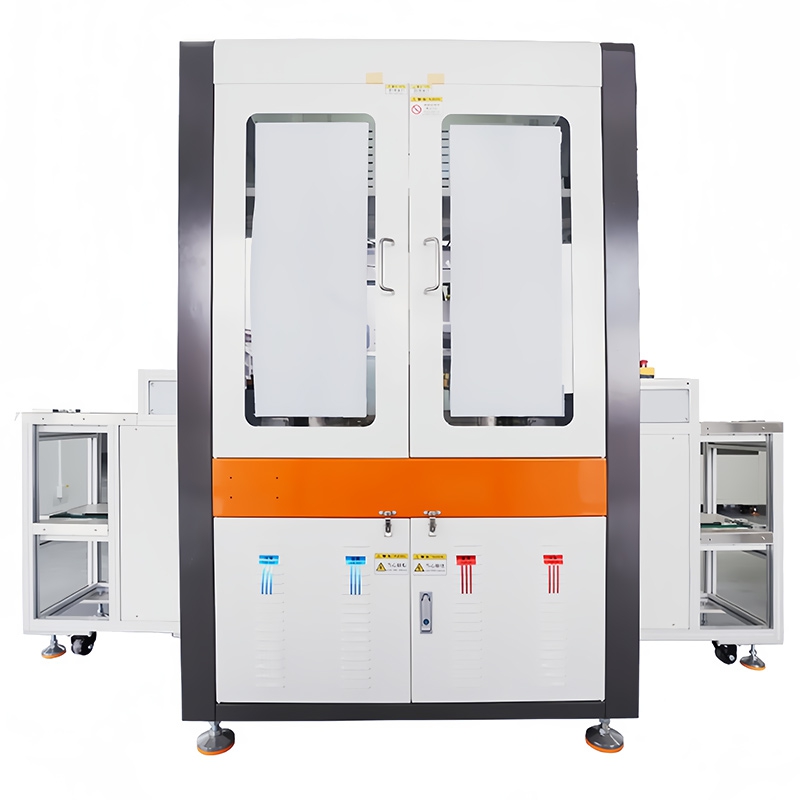

双头／双工位 Hot Bar 焊接机
双头/双工位 Hot Bar 焊接机采用双焊接模块设计，可在 X/Y/Z 方向进行运动控制，适合一次完成两面或四面的集成加工。
服务与支持
拨打
Product Introduction
Product Introduction
Applications

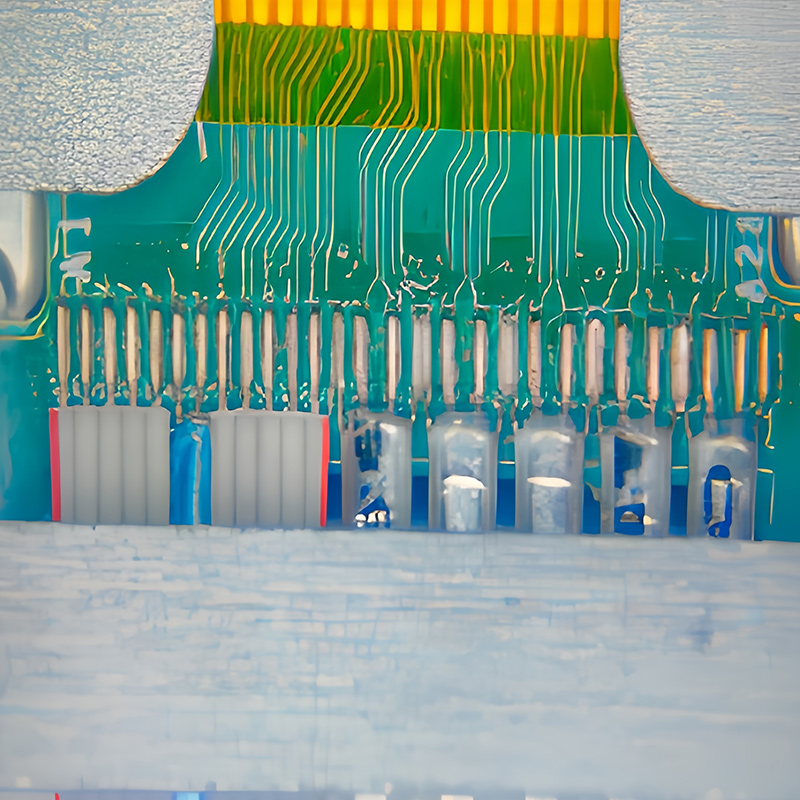

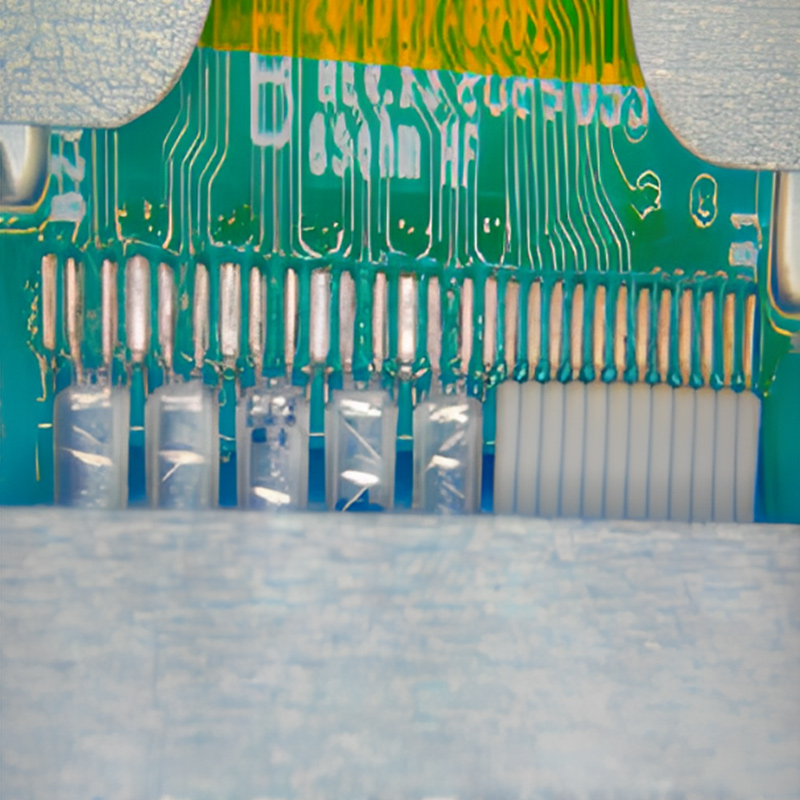

高速线缆与 PCB 双面或多面 Hot Bar 焊接。
适合小型组件、保护板、精密器件等批量焊接。
Key Advantages
- 双头同步焊接具备效率提升潜力。
- 伺服模组驱动，重复定位精度高。
- 支持温度曲线、双脉冲参数和多组焊接参数存储，便于换型。
Technical Parameters
Technical Specifications
| 项目 | 参数 |
|---|---|
| 重复定位精度 | ±0.02 mm |
| 温控精度 | ±5 °C |
| 设备功率 | 25 kW |
| 工作气压 | 0.5-0.7 MPa |
| Voltage | AC220V 50Hz |
| OEE | ＞85% |
| 一次通过良率 | ＞98% |
| 设备重量 | 800 kg |
| 温控精度 | ±5℃ |
| 焊接行程精度 | ±0.01 mm |
| 焊接范围 | ≤230 mm |
| 焊接 CT | 15s |
| 焊接压力精度 | ±0.5 kg |
